About this replacement

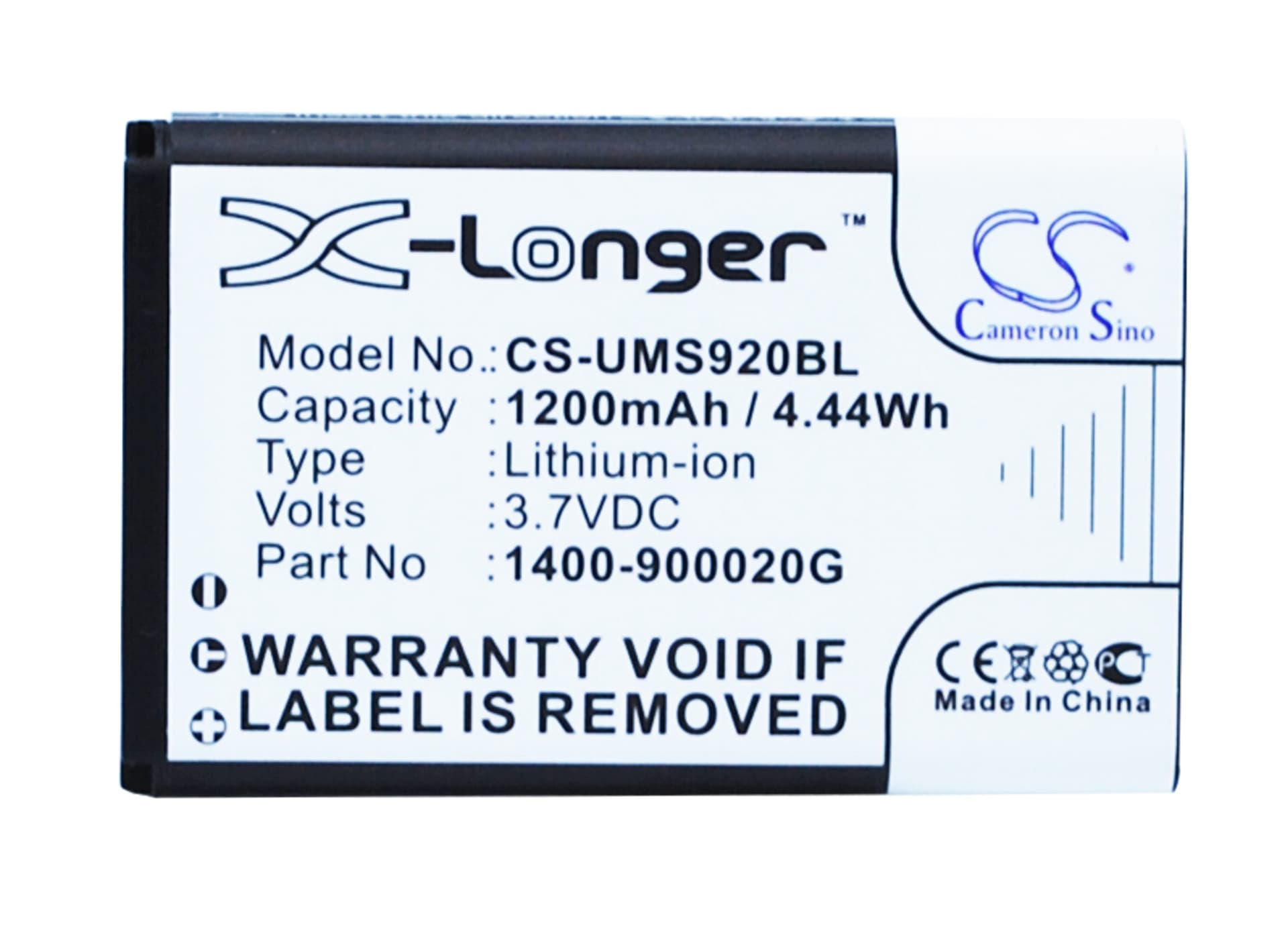

Unitech MS920 — 3.7V Li-ion Replacement Battery (1400-900020G)
This 3.7V Li-ion cell at 1200mAh replaces the OEM pack in the Unitech MS920 handheld barcode scanner. The MS920 is a compact data collection device used in retail, warehouse, and logistics environments for barcode scanning and inventory capture. Voltage and connector match the original specification exactly.
- MS920 platform fit: The MS920 runs a single-cell 3.7V Li-ion architecture with a fixed BMS handshake tied to the dock charging circuit. This replacement carries the same cell chemistry and voltage rails, so the scanner's charge controller recognises the pack without throwing a fault.
- Bench tested on actual hardware: We cycled this pack through charge and discharge on the MS920 platform and monitored BMS behaviour under scan-trigger inrush and simultaneous wireless polling. The protection circuit held stable across both load conditions with no unexpected cutoff events.
- First-shift preparation for pick-and-pack use: After installing this pack, seat the MS920 in its cradle and run a full charge cycle before pulling it for active use. Scan-trigger inrush current peaks when the cell is near minimum charge — a fully conditioned cell prevents false BMS trips during the first high-frequency scanning burst of a shift.
Cradle showing a charging error on a new pack
The MS920 dock communicates with the battery pack through pogo-pin contacts on the base of the scanner. Oxidation or debris on those contacts raises resistance enough that the charger misreads the pack state and flags an error. This is not a faulty cell — it is a contact issue. Wipe the contacts on both the battery and the dock with a dry cloth, reseat the scanner firmly, and the error clears in most cases.
Scanner losing wireless connection during rapid scan bursts
During high-frequency scanning, the MS920 draws current simultaneously from the scan trigger and the wireless radio. Combined inrush on a low cell can push voltage momentarily below the radio module's minimum operating threshold, dropping the connection. The BMS does not trip — the radio simply loses power long enough to disconnect. Charge the pack to 4.2V before starting a high-volume scanning session to keep the cell above the radio's floor under combined load.
