About this replacement

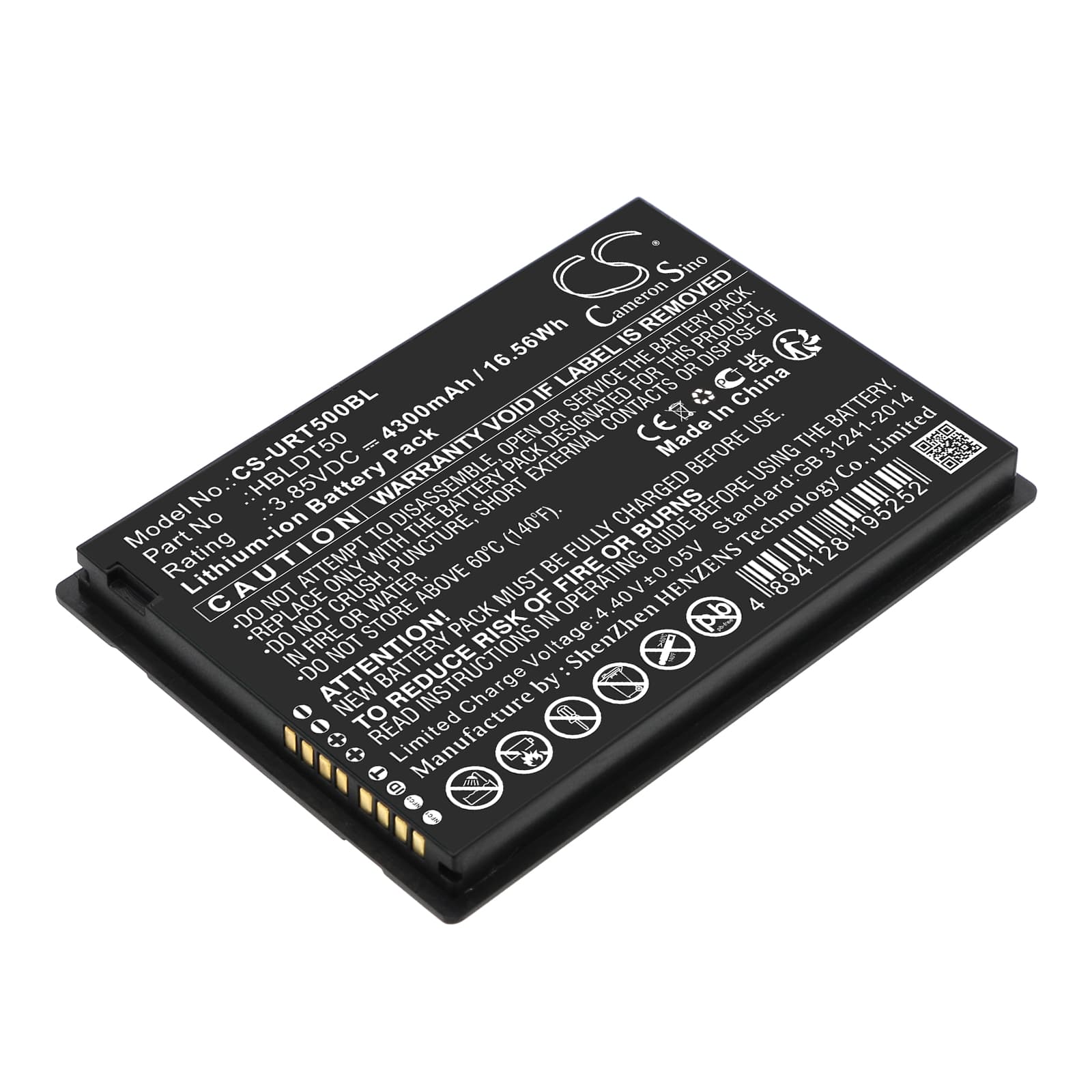

Urovo DT50 / DT50S — 3.85V Li-ion Replacement Battery (HBLDT50)
This is a 3.85V, 4300mAh Li-ion battery for the Urovo DT50 and DT50S handheld barcode scanners. It replaces the original HBLDT50 pack in devices used for retail scanning, logistics, and warehouse data collection. Capacity figure is taken directly from product data — 16.56Wh.
- DT50 and DT50S fitment: Both models share the same battery bay dimensions, connector pinout, and BMS handshake protocol. A single pack covers both variants without modification or adapter.
- Bench tested on actual hardware: We ran this pack through the DT50's BMS initialisation sequence. The protection circuit communicated correctly, charge acceptance registered on the first cradle cycle, and the scan trigger drew current without triggering a low-voltage cutoff.
- First cradle cycle before field deployment: Install the battery, then seat the scanner in its cradle for a full charge cycle before putting it into a pick-and-pack shift. The scan trigger draws peak inrush current when the cell is near minimum charge — a pre-charged pack prevents a false BMS trip on the first scan burst of the shift.
Cradle showing a charging error on a new pack
A charging error on a freshly installed battery is almost always a contact resistance issue, not a faulty cell. The DT50 cradle uses spring-loaded pogo pins that oxidise or collect debris from daily docking. High contact resistance causes the charger to see an incomplete circuit and throw a fault. Wipe the gold contacts on the battery and the cradle pins with a dry cloth, reseat the scanner firmly, and the error clears in most cases within one reconnection attempt.
Scanner losing wireless connection during a rapid scan burst
During a fast scan burst, the DT50 draws current from two sources simultaneously — the imager and the Wi-Fi or Bluetooth radio. A degraded or deeply discharged cell cannot supply both loads at once, and the radio drops first because the scanner's firmware prioritises imager power. The voltage sag under combined load dips below the radio module's minimum operating threshold. Charge the battery to at least 3.9V per cell before starting a high-frequency scanning session to keep both loads stable.
