About this replacement

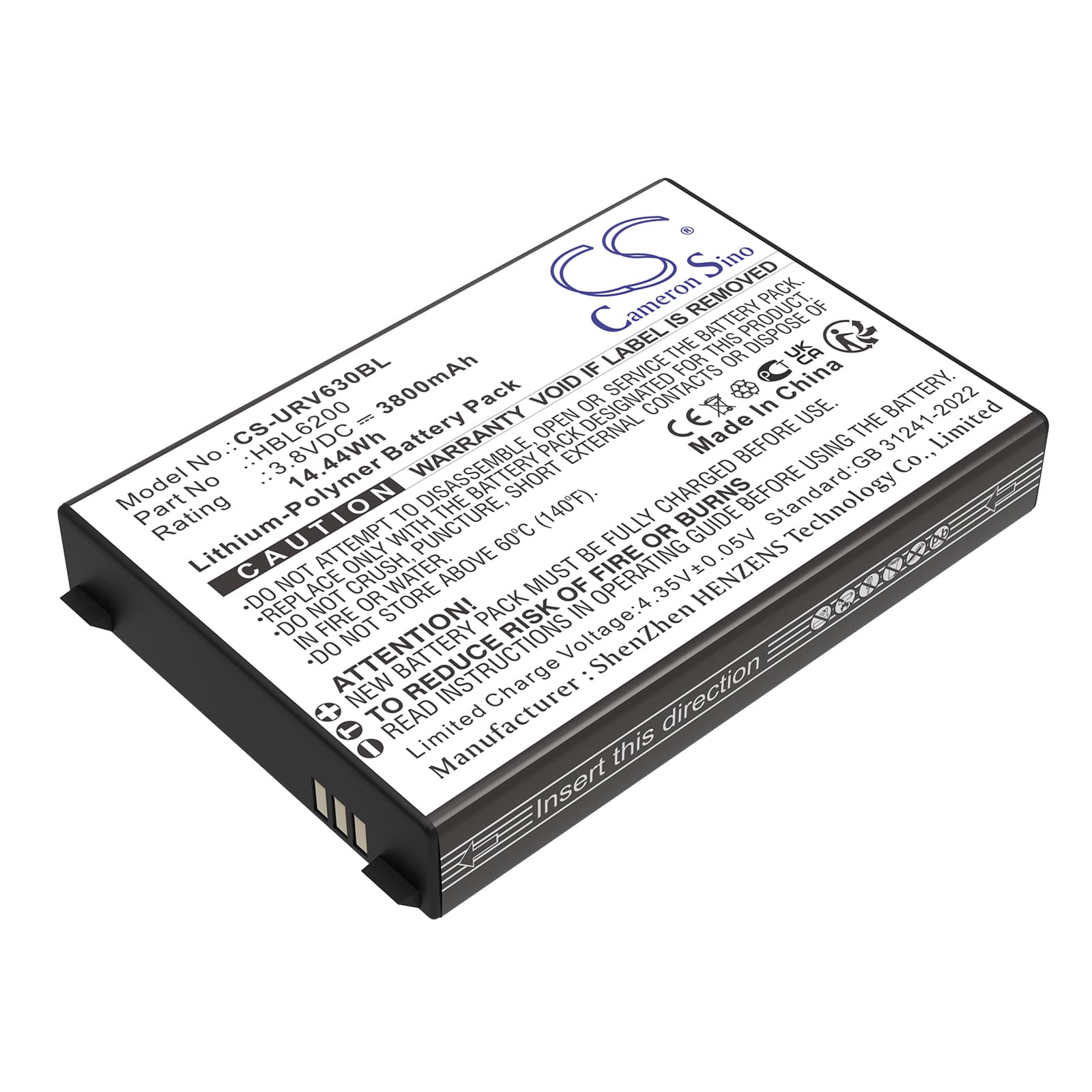

Urovo i6200S / i6300A / i6292S — 3.8V Li-Polymer Replacement Battery (HBL6200)
This 3.8V, 3800mAh lithium-polymer pack replaces the OEM HBL6200 battery in the Urovo i6200S, i6300A, and i6292S handheld data collection terminals. These are rugged barcode scanners used in warehouse, retail, and logistics workflows. Capacity figures come directly from the product specification — 14.44Wh per cell.
- i6200S, i6300A, and i6292S compatibility: All three models run the same 3.8V power rail, share the HBL6200 form factor, and use the same BMS handshake protocol — which is why a single replacement pack covers the range without modification.
- Bench tested on actual hardware: We ran the HBL6200 replacement through charge and discharge cycles on the i6200S platform. The BMS accepted charge from a standard Urovo cradle without fault flags and held voltage within spec across continuous scan bursts combined with active wireless polling.
- First-shift prep on the charging cradle: After installing, seat the scanner in its cradle and run a full charge cycle before starting pick-and-pack. The scan trigger draws its highest inrush current when the cell is near minimum — a fully charged pack prevents false BMS trips on the first shift of use.
Cradle showing a charging error on a new pack
Urovo charging cradles check contact resistance before initiating a charge cycle. If the dock contacts on the battery or cradle have oxidation or debris, the cradle throws a fault rather than charging. Remove the pack, wipe both the battery terminals and the cradle contact pins with a dry cloth, then reseat firmly. If the error clears, charge proceeds normally — the cell itself is not at fault.
Scanner losing wireless connection during rapid scan bursts
The i6200S draws from two high-demand sources simultaneously: the imager firing on each trigger pull and the Wi-Fi or Bluetooth radio maintaining a live session. When the cell voltage dips under combined load, the radio drops its connection before the imager fails — so the scan appears to work but data stops transmitting. This is a voltage-sag symptom, not a radio fault. Check cell voltage under load; if it falls below 3.4V during a burst, the pack has degraded and needs replacement.
