About this replacement

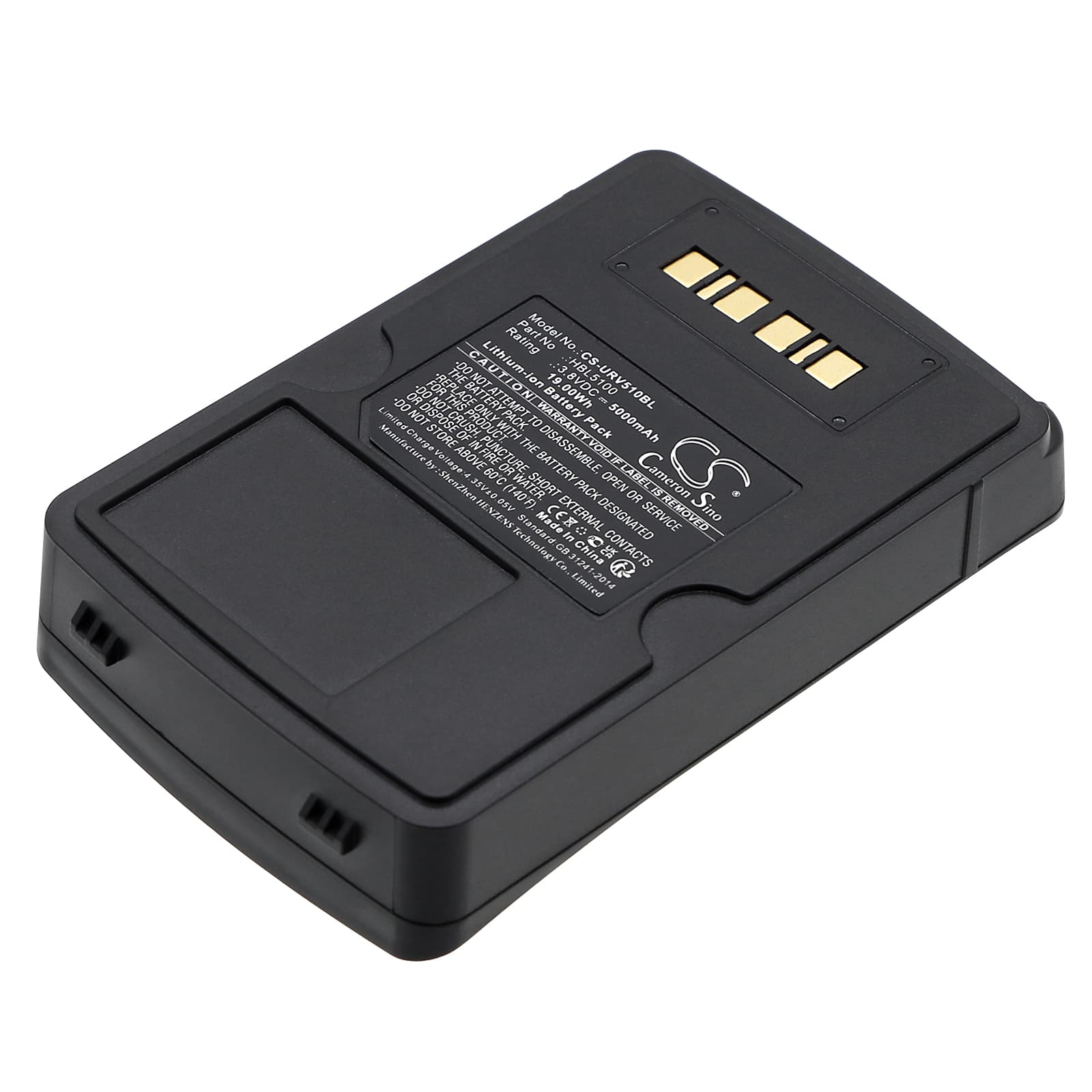

Urovo V5100 / V5150 — 3.8V Li-ion Replacement Battery (HBL5100)
This is a 3.8V Li-ion cell rated at 5000mAh (19Wh), built to fit the Urovo V5100 and V5150 handheld barcode scanners. These units run in warehouse pick-and-pack lines, retail stockrooms, and logistics operations where scan volume is high and downtime is costly. The HBL5100 part number matches the OEM connector, contact layout, and BMS handshake on both models.
- V5100 and V5150 compatibility: Both models share the same battery bay geometry, contact pin arrangement, and 3.8V voltage rail. The BMS on each device communicates with the pack over the same data line, so one cell covers both scanners without modification.
- Bench tested on actual hardware: We cycled the pack through rapid scan bursts combined with active wireless polling — the two highest simultaneous draws on this device. The BMS held cutoff thresholds without false trips across repeated cycles.
- First-shift preparation: After installing this pack, seat the scanner in its charging cradle and run a full charge cycle before taking it onto the floor. Scan trigger inrush current peaks when the cell is near minimum, and starting the first shift on a full cell prevents false BMS trips during the first hour of heavy scanning.
Cradle showing charging error on a new HBL5100 pack
A charging error on a new pack almost always comes down to contact resistance at the dock pins, not a fault in the cell itself. Dust, oxidation, or a thin film from packaging on the battery contacts breaks the low-voltage handshake between the pack and the cradle controller. Wipe the gold contacts on both the battery and the cradle with a dry lint-free cloth, then reseat the scanner firmly until you hear it click. If the error clears, the pack was fine — the contact surface was the problem.
Scanner losing wireless connection during rapid scan bursts
The V5100 draws simultaneously from the scan engine and the wireless radio during a burst — two inrush spikes stacking on top of each other. If the cell voltage sags below the radio module's minimum operating threshold during that combined draw, the wireless stack drops before the BMS trips the full pack. This tends to appear mid-shift when the battery is below 30% charge. Keep the pack above that level during high-frequency scanning runs, or swap batteries at the halfway point of a long shift rather than running to cutoff.
