About this replacement

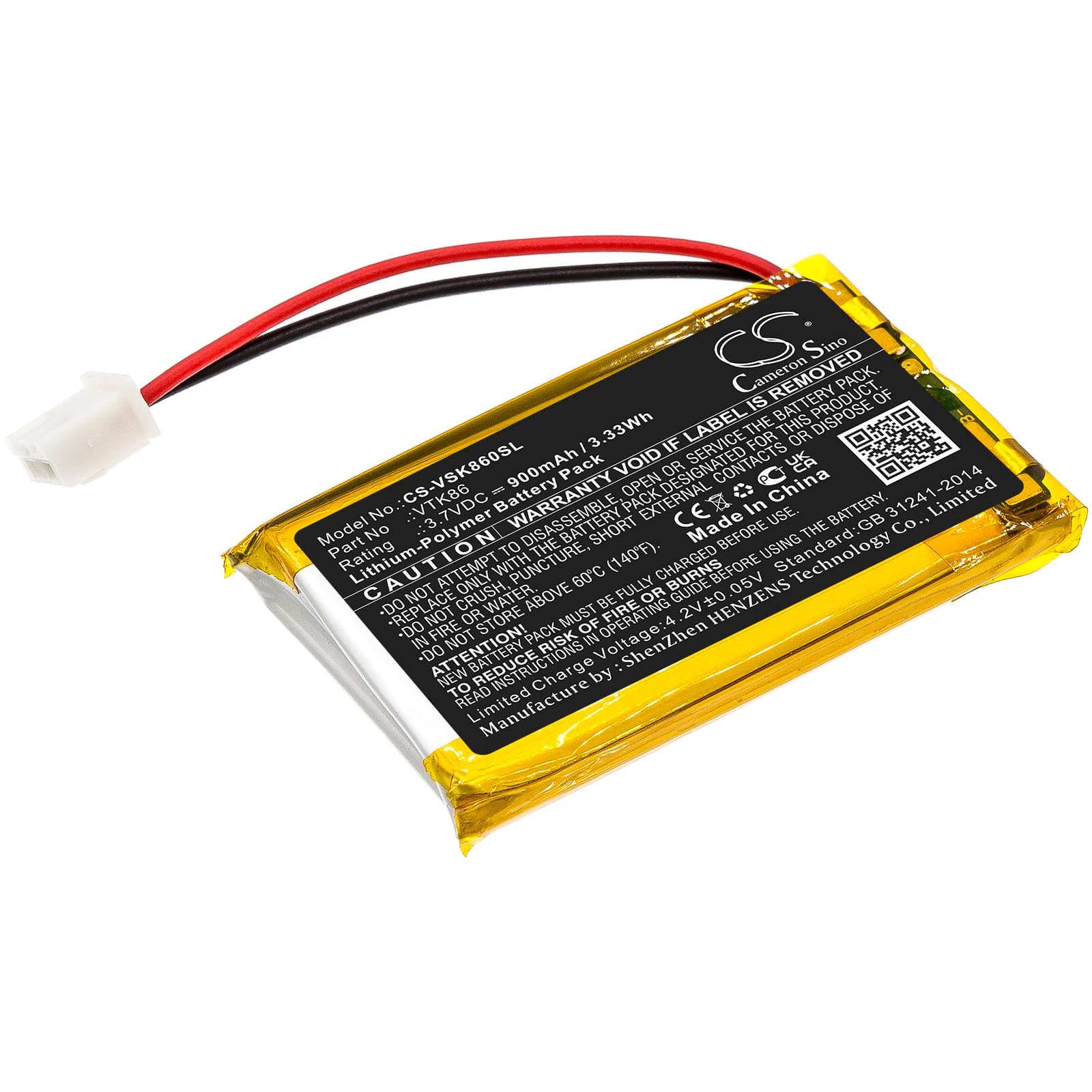

Velocitek Shift — 3.7V Li-Polymer Replacement Battery (VTK86)
This is a 3.7V, 900mAh Li-Polymer cell for the Velocitek Shift handheld GPS navigator. The Shift is a sailing performance device that delivers real-time wind and speed data on the water. This battery replaces part number VTK86 and fits the Shift directly.
- Velocitek Shift compatibility: The Shift uses a single Li-Polymer cell with a 3.7V nominal rail and a specific connector footprint. The onboard BMS communicates directly with this cell to manage charge termination and low-voltage cutoff. Any cell going into this slot must match both the voltage and the physical dimensions — 49.50 × 30.00 × 6.00mm — to seat correctly without stressing the flex connector.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the bench and confirmed the BMS accepted the cell without fault flags. Charge termination triggered correctly at full capacity, and the low-voltage cutoff fired at the expected threshold before the cell could be damaged.
- Cold-start satellite acquisition after swap: After fitting this cell, power the Shift fully on outdoors and allow it to acquire a satellite fix before heading out. The unit performs a cold start after full power removal — first fix can take 5–10 minutes, versus under a minute on a subsequent warm start. Let it complete that fix on solid ground.
GPS accuracy reduced when the Shift battery drops below half charge
Some GPS receivers scale back receiver sensitivity at lower battery voltages to reduce current draw. On a degraded or deeply discharged Li-Polymer cell, the voltage sag under load can push the Shift into this lower-power state even when the indicator still shows charge remaining. The result is slower position updates and reduced accuracy in heavy tree cover or at dock with obstructed sky view. Keeping the cell above 3.6V under load is the practical threshold where full receiver sensitivity stays active.
Shift shuts off without warning before the low-battery indicator appears
This happens when the battery gauge has drifted out of calibration — common after the original cell degrades significantly. The voltage-based shutoff threshold fires before the visual low-battery warning gets a chance to display. After fitting a new cell, run two full charge and discharge cycles to let the gauge recalibrate against the new cell's actual capacity curve. After those cycles, the warning indicator should reappear at the correct point, around 3.5V resting voltage.
