About this replacement

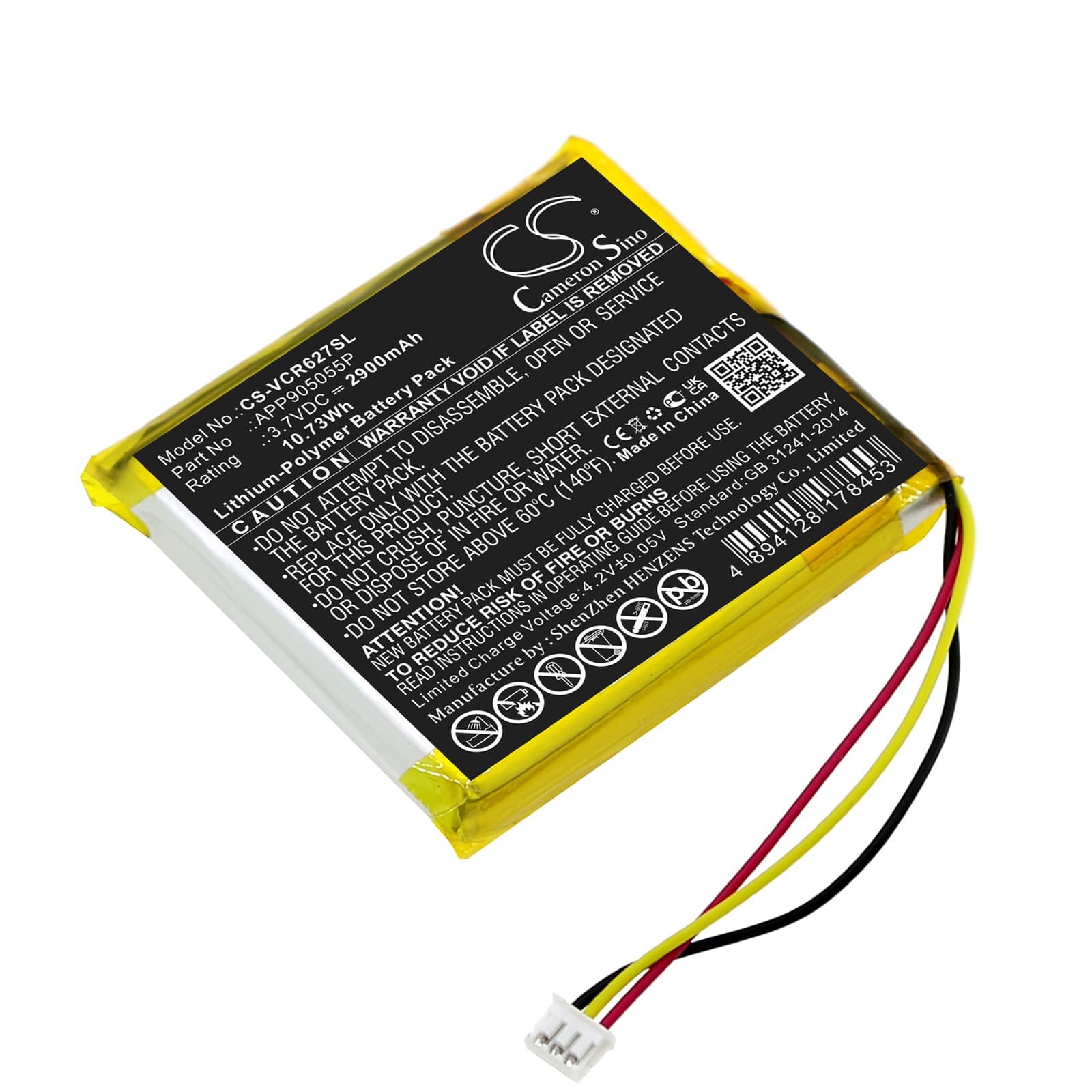

VentureCraft Vantam Piano Jazz Classic R627 — 3.7V Li-Polymer Replacement Battery (APP905055P)
This 3.7V, 2900mAh lithium-polymer battery is a direct replacement for the VentureCraft Vantam Piano Jazz Classic R627 portable amplifier. It restores cordless operation when the original cell has degraded or failed. Capacity and voltage match the APP905055P specification exactly.
- R627 amplifier platform: The R627 runs a single-cell Li-Polymer architecture at 3.7V nominal. The BMS in this unit monitors cell voltage tightly — any cell that drifts outside the expected voltage window triggers a hard shutdown. This replacement cell matches that voltage profile, so the BMS handshake completes without fault codes.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the R627 platform. The BMS accepted the cell without triggering overcurrent protection, and the voltage hold across mid-range audio output loads stayed stable throughout the test runs.
- First-cycle current calibration: Run the amplifier at 50% volume for the first full charge cycle. Full-volume operation during the first cycle draws peak current from an uncalibrated cell and can cause a premature BMS trip before the cell reaches its rated delivery capacity.
Amp shutting off before the battery indicator reaches empty
The R627's battery indicator reads state of charge from a voltage curve, but the amplifier's audio output stage needs a higher minimum supply voltage than the display cutoff assumes. When the cell voltage drops under sustained audio load — even briefly — the output stage loses its headroom and the unit shuts down. The display may still show one bar of charge remaining. This is not a battery fault — it is the amp protecting its output circuit. A fresh cell with full capacity holds voltage under load longer, pushing that cutoff point later into the discharge cycle.
Clipping or distortion appearing at moderate volume on a new battery
Clipping at moderate volume on a new cell usually points to voltage sag — a momentary dip in cell voltage when the audio signal hits a transient peak. Li-Polymer cells deliver less current cleanly during the first few cycles before internal resistance stabilises. If clipping disappears after two or three full charge cycles, the cell was still conditioning. If it persists, check that the battery connector is fully seated — a loose contact adds resistance that amplifies sag under any dynamic load. Verify supply voltage at the connector reads at or above 3.6V under light load before suspecting the cell itself.
