About this replacement

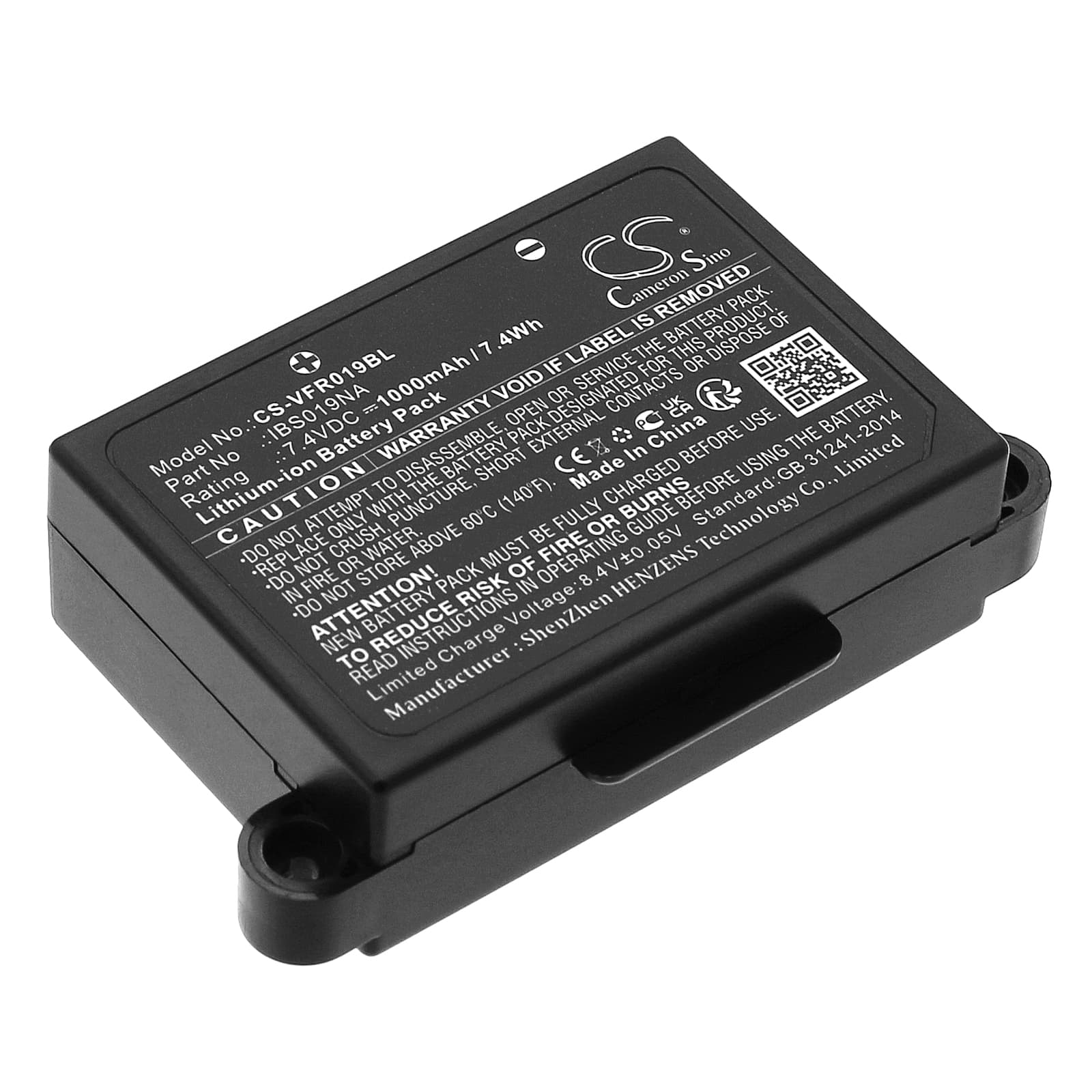

VeriFone T650C / Trinity T650c — 7.4V Li-ion Replacement Battery (IBS019NA)
This 7.4V, 1000mAh Li-ion battery replaces the OEM IBS019NA cell in VeriFone payment terminals, including the T650C and Trinity T650c. It restores power to portable card processing units used in retail and service point-of-sale environments. Voltage and capacity match the original spec exactly.
- T650C and Trinity T650c compatibility: Both models run the same 7.4V power rail and use an identical connector pinout and BMS handshake protocol. A single cell covers both variants without modification.
- Bench tested on actual hardware: We cycled this battery through boot, wireless pairing, and transaction sequences on a T650C unit. The BMS accepted the handshake on the first full power cycle and held voltage within the expected range across repeated card-read and print events.
- First deployment tip for the T650C: After installation, complete one full transaction cycle before deploying in a live environment. The terminal maps battery capacity during normal operation and requires at least one complete power cycle to calibrate the charge indicator correctly.
Payment terminal rebooting mid-transaction after battery swap
The T650C receipt printer draws a short current spike when it fires — typically enough to trigger the BMS overcurrent protection on a partially conditioned cell. This causes the terminal to cut power and reboot mid-sale. The fix is to run two or three full transaction cycles on the new battery before live use. After that, the BMS has profiled the load and will not trip on a normal printer burst.
Terminal not completing PCI boot sequence on a freshly installed battery
The T650C runs a PCI compliance check during boot that draws more current than standby. If the battery cell arrived partially discharged, the terminal may stall or restart before the sequence completes. Connect the terminal to its charger first, allow a full charge cycle, then power on. Once the cell reaches 8.0V or above, the boot sequence completes without interruption.
