About this replacement

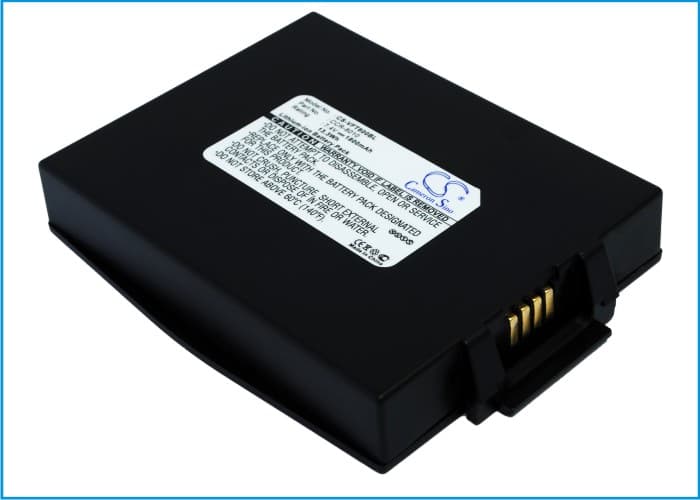

VeriFone Nurit 8000 Series — 7.4V Li-ion Replacement Battery (CCR-8010)
This 7.4V, 1800mAh Li-ion battery replaces the original CCR-8010 cell in the VeriFone Nurit 8000 and Nurit 8010 payment terminals, including Wireless Terminal variants. It fits handheld POS devices used for processing card transactions in retail, hospitality, and mobile merchant environments.
- Nurit 8000 and 8010 platform fit: Both the 8000 and 8010 share the same battery bay geometry, connector pinout, and BMS handshake protocol — a single cell covers both. The CCR-8010 part number is also referenced by VeriFone under 80BT-LG-M05-GRY1 and 80BT-LG-M05-BLU1-J.
- Bench tested on actual hardware: We cycled this cell through full charge-discharge sequences on the Nurit 8000 platform. The BMS accepted the cell without error flags, the charge IC reached top-off stage correctly, and the terminal completed PCI boot sequence on the first power-on.
- First deployment tip: After installing the battery, run one complete transaction cycle — including a receipt print — before putting the terminal into live service. The Nurit 8000 maps battery capacity during normal operation and needs at least one full power cycle to calibrate the charge indicator accurately.
Receipt printer current spike tripping the BMS mid-transaction
The Nurit 8000 combines wireless radio, display backlight, and a thermal print head on a single battery rail. When all three draw simultaneously — during a card approval that triggers an immediate receipt print — the combined current spike can exceed the BMS overcurrent threshold on a degraded or cold cell. A fresh CCR-8010 cell has the capacity headroom to absorb that spike without tripping. If the terminal cuts out specifically at the moment of printing, the battery is the first thing to check, not the printer mechanism itself.
Terminal will not power on after sitting unused in a drawer
Li-ion cells self-discharge at roughly 2–3% per month. A Nurit 8000 left unpowered for several months can drop below the BMS recovery threshold — typically around 2.5V per cell — causing the terminal to show no response on the power button. Place the terminal on its charging base and leave it for at least 90 minutes before attempting to power on. If the charge LED never lights, the cell may be below the charger's detection threshold; try a known-good battery first to confirm whether the issue is the cell or the charging dock. A recovered cell should read at least 7.0V before boot.
