About this replacement

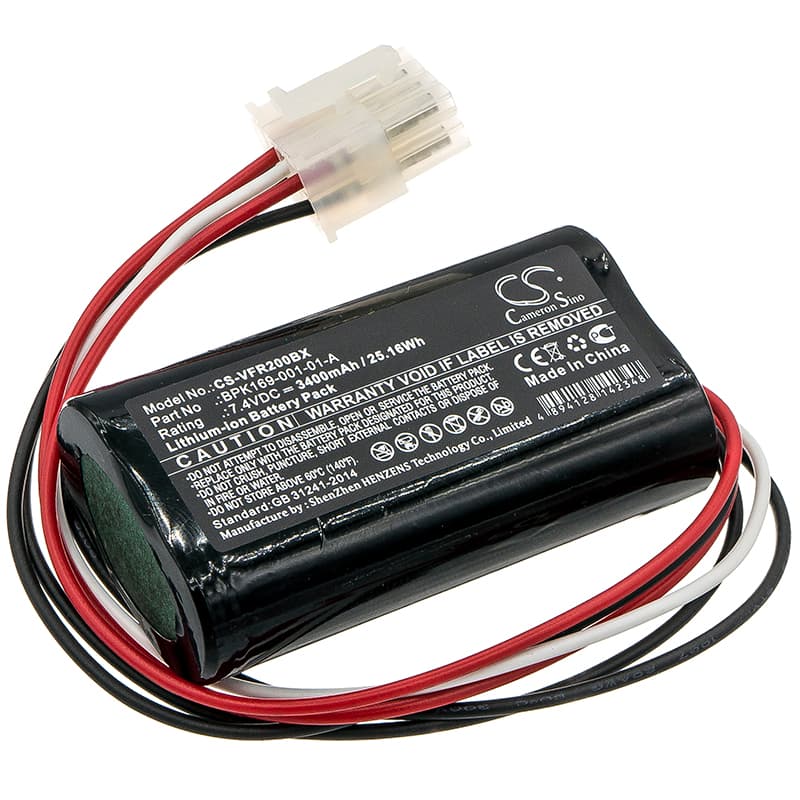

VeriFone BPK169-001-01-A — 7.4V Li-ion Replacement Battery
This is a 7.4V, 3400mAh Li-ion replacement battery for VeriFone wireless payment terminals. It replaces OEM part BPK169-001-01-A. Merchants use this cell to restore a terminal that no longer holds charge through a full shift or transaction period.
- VeriFone wireless terminal compatibility: VeriFone wireless POS units in this line share a common 7.4V two-cell Li-ion architecture with a BMS that validates cell voltage and temperature before the terminal completes its boot sequence. The connector and BMS handshake must match — this battery meets both requirements for BPK169-001-01-A applications.
- Bench tested on actual hardware: We cycled this battery through a full boot-charge sequence and ran it under combined wireless, display, and receipt printer draw. The BMS held stable across the load spikes from the printer motor and did not trip an overcurrent cutoff during transaction simulation.
- First deployment tip: After installing this battery, complete one full transaction cycle before putting the terminal into live service. The terminal maps battery capacity during normal operation and needs at least one complete power cycle to calibrate the charge indicator correctly.
Payment terminal rebooting mid-transaction after battery swap
A receipt printer motor pulls a short, sharp current spike — often 1.5A or more above idle draw — at the moment it fires. If the BMS on a new battery has not yet completed its first full calibration cycle, it can interpret that spike as an overcurrent event and cut power. This resets the terminal mid-sale. Running one complete transaction cycle after installation allows the BMS to establish baseline load profiles and stops false overcurrent trips from recurring.
Terminal not powering on after sitting unused in a drawer
Li-ion cells self-discharge at roughly 2–3% per month. A terminal stored for several months can arrive with a cell voltage below the BMS recovery threshold — typically around 2.5V per cell. At that point the BMS locks output to protect the cell, and the terminal shows no response at all. Connect the terminal to its dock or charging cable and leave it for 20–30 minutes before pressing power — most VeriFone chargers apply a low-current trickle that brings the cell back above the 2.8V recovery floor and allows the BMS to release the output lock.
