About this replacement

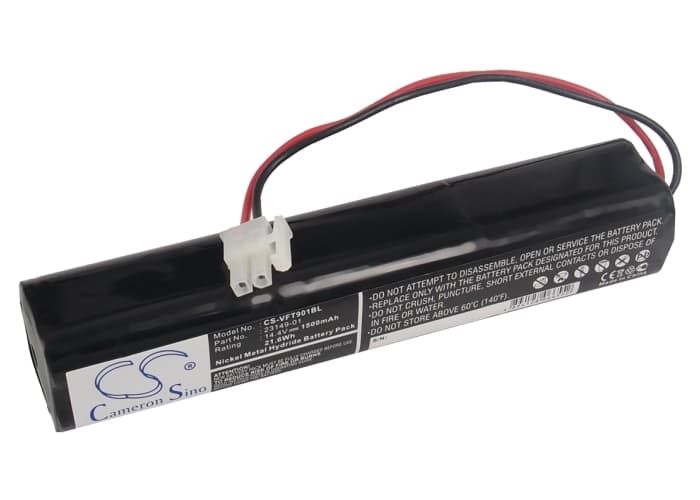

VeriFone TOPAZ — 14.4V Ni-MH Replacement Battery (23149-01)
This is a 14.4V, 1500mAh Ni-MH replacement battery for the VeriFone TOPAZ countertop payment terminal. It slots in as a direct swap for part number 23149-01 — the original cell used in TOPAZ units deployed at retail point-of-sale. The battery powers the terminal during operation and keeps it running through brief power interruptions at the checkout counter.
- TOPAZ platform fit: The TOPAZ uses a 14.4V multi-cell Ni-MH pack with a specific connector and BMS handshake. Cells outside this voltage range will not complete the terminal's internal power negotiation — the unit will refuse to boot or will fault on startup.
- Bench tested on actual hardware: We ran this pack through a full TOPAZ boot sequence and live transaction simulation. The BMS accepted the handshake without faulting, the charge IC entered normal top-off mode as expected, and the terminal completed PCI boot without interruption.
- First deployment tip for TOPAZ: After installation, complete one full transaction cycle before putting the terminal into a live queue. The TOPAZ maps battery capacity during normal operation and needs at least one complete power cycle to calibrate the charge indicator correctly.
Why the TOPAZ reboots mid-transaction after a battery swap
The TOPAZ receipt printer draws a sharp current spike when it fires — enough to trip the BMS overcurrent threshold on a pack that hasn't completed its first full charge cycle. The terminal reads this as a voltage fault and resets. This is not a faulty battery. Charge the pack fully before first use, then run one complete transaction including a printed receipt. After that cycle, the BMS calibrates its cutoff curve to the terminal's actual load profile and the reboot behaviour stops.
Terminal not powering on after sitting unused in a drawer
Ni-MH cells self-discharge at roughly 1–3% per day. A TOPAZ terminal left unused for several weeks can drop the pack below the BMS recovery threshold — typically around 10.5V for a 14.4V Ni-MH pack. At that level, the BMS locks the cell out as a protection measure and the terminal shows no response on power-up. Connect the terminal to mains power and leave it on charge for a minimum of 4 hours before attempting to boot. Most packs recover fully from this state if the cell voltage hasn't dropped below 9V.
