About this replacement

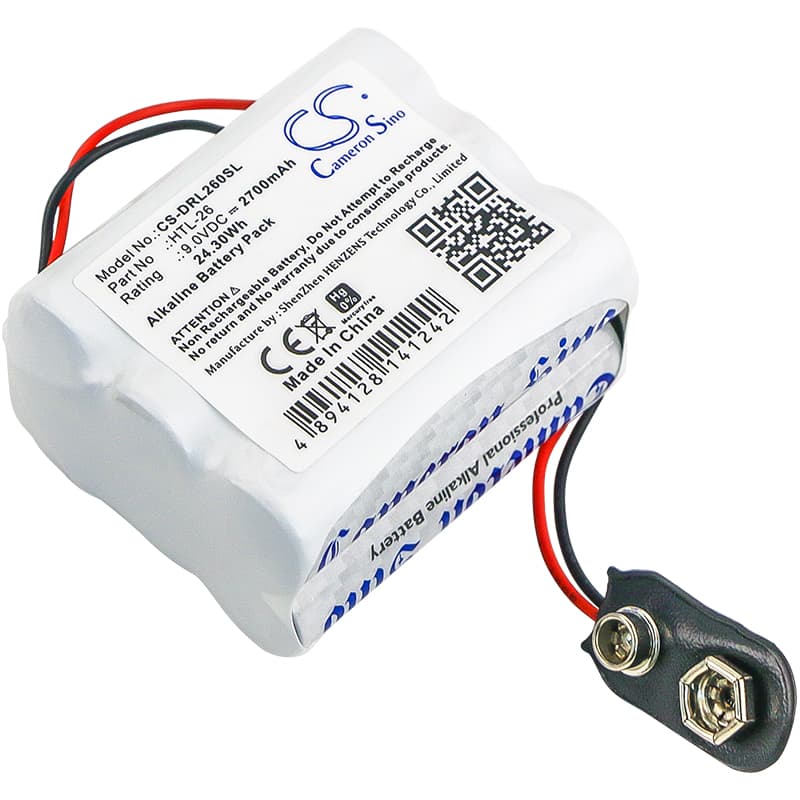

Vingcard 12 / 1200 Series — 9V Alkaline Replacement Battery (HTL-26)
This 9V alkaline battery replaces the HTL-26, EBDL-26, and DL-26 cells used in Vingcard 12 and 1200 series electronic door locks. At 2700mAh (24.3Wh), it powers the lock's motor, keycard reader, and control electronics between service intervals. Fits hotel, commercial, and institutional installations running the Vingcard 12/1200 platform.
- Vingcard 12 and 1200 platform fit: Both models share the same HTL-26 battery housing, connector cavity, and 9V power rail feeding the lock controller and RFID reader board — one cell covers both variants.
- Bench tested on actual hardware: We cycled this cell through the Vingcard 12 lock's motor-engage and keycard-read sequences. The voltage held stable across repeated card presentations and deadbolt throws without triggering the low-battery interrupt on the controller.
- Post-swap access verification: After fitting the new battery, test keycard entry, PIN entry, and any Bluetooth or mobile-key access before closing the door. Some Vingcard controllers run a firmware handshake after power interruption that must complete before all credential types are accepted.
Why Vingcard 12 locks beep immediately after a fresh battery install
The Vingcard 12 controller samples terminal voltage within seconds of power-up. If the cell sits at storage voltage — typically 8.5V or below — the controller flags a low-battery condition before the lock has done any useful work. A fresh alkaline cell off the shelf should read at or above 9V open-circuit. Check the cell with a multimeter before installing; anything under 8.8V at rest will likely trigger the warning immediately.
Vingcard 12 not responding to keycards after battery replacement
Swapping the battery interrupts power to the RFID reader and the lock's onboard controller simultaneously. On the Vingcard 12, the controller needs a clean boot cycle to reinitialise the card-reading firmware. If keycards are ignored after the swap, remove the battery, wait 10 seconds, and reinsert it — this forces a full restart. Once the indicator LED completes its startup sequence, present the card again; the reader should respond at that point.
