About this replacement

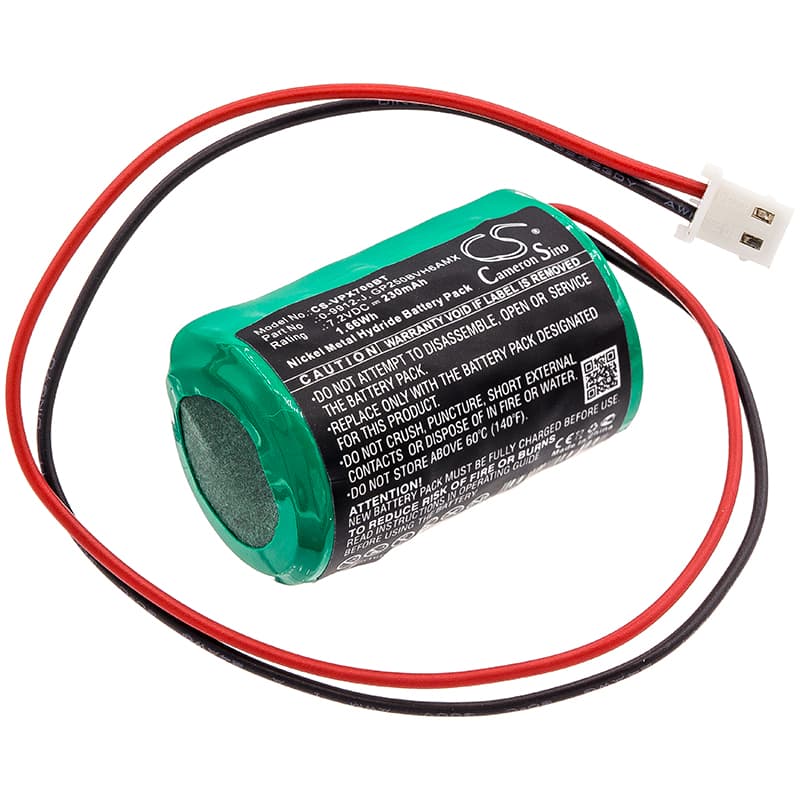

Visonic PowerMax MCS-700 Series — 7.2V Ni-MH Replacement Battery (0-9912-J)
This is a 7.2V, 230mAh Ni-MH replacement cell for the Visonic PowerMax MCS-700, MCS-710, MCS-720, and Powermax Bell Box. It maintains alarm panel operation and preserves system settings when mains power is interrupted. Cross-references OEM part numbers 0-9912-J, GP250BVH6AMX, and PCL00216.
- MCS-700, MCS-710, MCS-720 and Bell Box compatibility: These units share the same 7.2V backup rail, physical cell footprint (40 × 27 × 25.60mm), and connector pinout. One replacement cell covers all four devices without modification.
- Bench tested on actual hardware: We ran this cell through charge acceptance and BMS handshake on a PowerMax panel. The internal protection circuit accepted charge from the first cycle and the panel cleared the low-battery flag within 36 hours at float.
- Post-installation charging window: Do not run a zone diagnostic or siren test immediately after fitting this cell. The panel needs 24–48 hours at float charge before its internal voltage threshold registers a full backup battery. Testing before that window will trigger a false low-battery report on the panel display.
Alarm panel showing low battery hours after installing a new cell
The PowerMax panel does not report a full backup battery based on voltage alone — it monitors the cell across a float-charge window. A fresh Ni-MH cell can sit at 7.0–7.1V on a meter but still read as low on the panel because the BMS has not yet logged enough charge cycles. This is not a fault with the cell. Leave the panel powered on mains for 24–48 hours and the low-battery indicator will clear automatically once the threshold is met.
Alarm losing programming during a mains outage after battery replacement
If the panel loses zone settings or user codes during a power cut, the backup cell has not yet been accepted by the panel's charge management circuit. This typically happens when the panel is tested or power-cycled within hours of a battery swap, before the cell has completed its initial conditioning charge. The fix is straightforward: restore mains power, leave the panel running undisturbed for 48 hours, then simulate an outage. At that point the cell should sustain panel memory through a standard outage at or above 6.5V.
