About this replacement

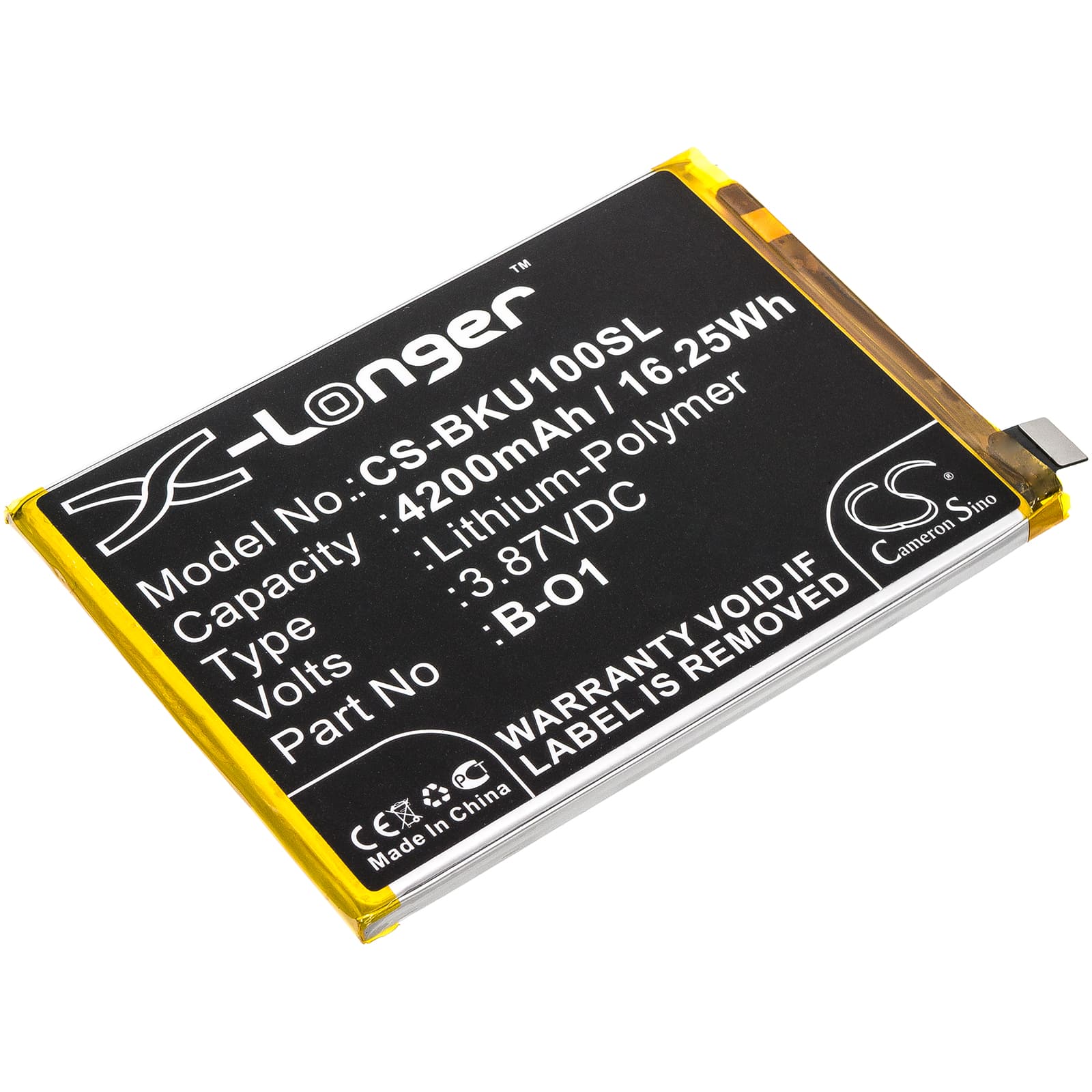

Vivo iQOO U1 / V2023A — 3.87V Li-Polymer Replacement Battery (B-O1)
This is a 3.87V, 4200mAh (16.25Wh) Li-Polymer cell that replaces the original B-O1 battery in the Vivo iQOO U1, V2023A, and V2023 smartphones. It fits the battery bay directly and connects to the existing flex cable and fuel gauge IC. Use this when the original cell no longer holds charge across a full day of screen-on time.
- iQOO U1 / V2023 platform fit: The U1, V2023A, and V2023 share the same battery bay geometry, flex connector pinout, and fuel gauge IC handshake — all three accept the B-O1 cell without modification to the ribbon or mounting frame.
- Bench tested on actual hardware: We cycled this cell through full charge and discharge on the iQOO U1 board. The BMS accepted charge without fault codes, the protection circuit tripped correctly at the low-voltage cutoff threshold, and the fuel gauge IC tracked state-of-charge through the full curve.
- First-cycle fast charge hold-off: On first use after installation, disable fast charging and run one complete discharge-charge cycle on standard 5V input. This lets the fuel gauge IC recalibrate its coulomb counter against the new cell's discharge curve before high-current fast charging pushes elevated amperage into an uncalibrated cell.
Why the iQOO U1 reports wrong battery percentage after a cell swap
The iQOO U1 uses a fuel gauge IC that tracks capacity through a coulomb counter — a running tally of charge in and charge out. When the original cell degrades, the OS recalibrates that counter to match the worn cell's reduced capacity curve. Install a fresh 4200mAh cell and the counter is still tuned to the old curve, so the percentage display reads high or low until the IC relearns the new cell. One full discharge down to auto-shutoff followed by a complete charge to 100% on standard wattage forces the IC to reset its endpoints. After that cycle, percentage readings stabilise.
Sudden shutdown at 20–30% on the replacement cell
This happens when the fuel gauge IC's state-of-charge map hasn't caught up with the new cell's voltage curve. Under modem or display load, the cell voltage dips sharply at the low end — the board sees a voltage cliff and triggers an emergency cutoff before the displayed percentage reaches zero. It's not a defective cell; it's an uncalibrated counter making the phone act on stale data. Run the phone down until it shuts itself off naturally, then charge uninterrupted to 100% at standard 5V — this resets the coulomb counter's lower endpoint to match the actual 3.0V cutoff of the new cell.
