About this replacement

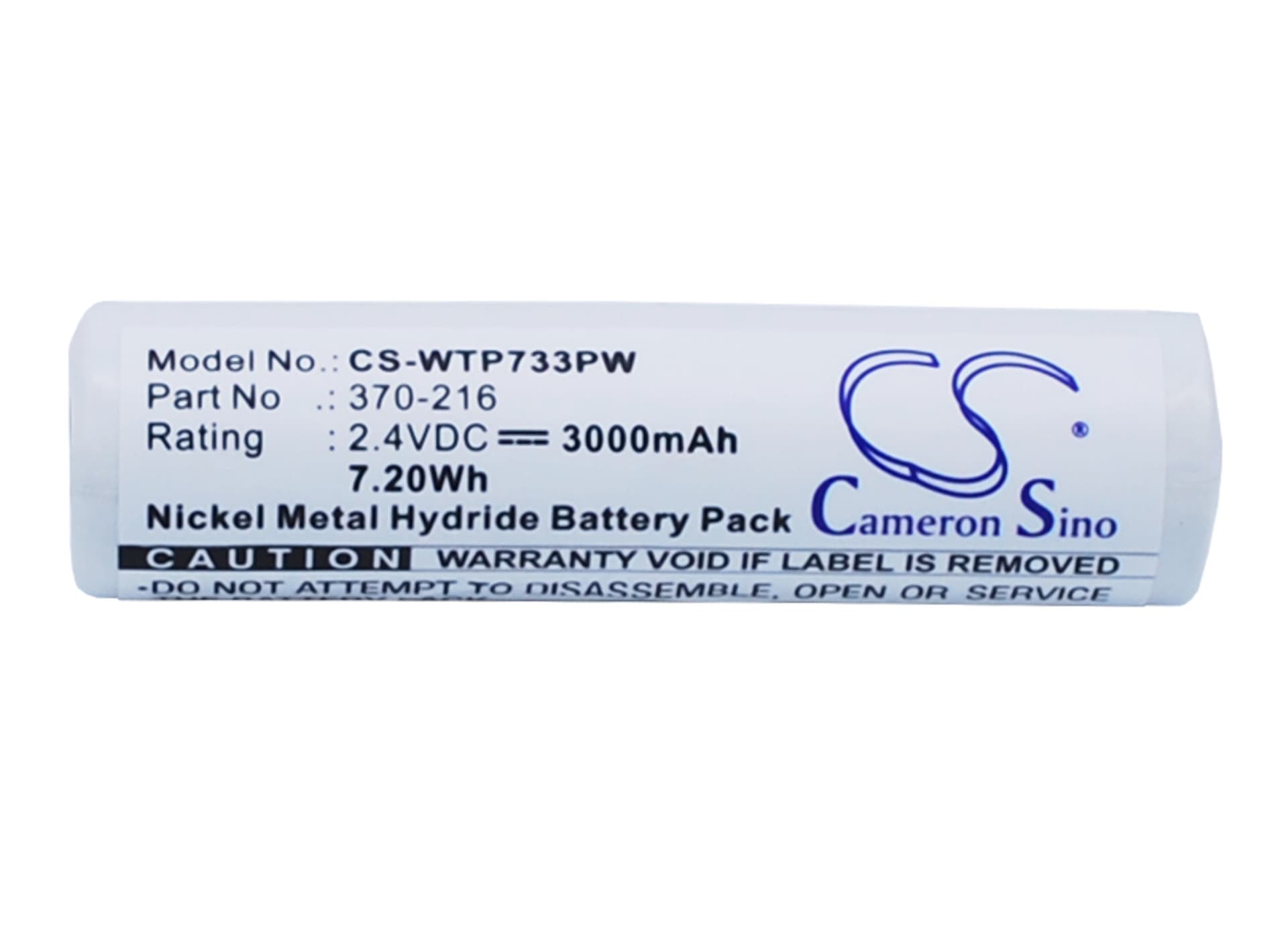

Wahl ISO-TIP 7733 / 7700 Series — 2.4V Ni-MH Replacement Battery (370-216)
This is a 2.4V, 3000mAh Ni-MH replacement battery for the Wahl ISO-TIP cordless soldering iron. It fits the ISO-TIP 7733, 7700, and 7740 models. The battery slots directly into the iron's handle and restores cordless soldering function when the original cell has degraded below usable capacity.
- ISO-TIP 7700 series compatibility: The 7700, 7733, and 7740 all run the same 2.4V two-cell Ni-MH pack with the same connector and physical footprint. Wahl used this pack across the series without changing the BMS handshake, so one replacement covers the full range.
- Bench tested on actual hardware: We cycled this battery through full heat-up sequences on the ISO-TIP platform. The BMS held through repeated heater element draws without triggering overcurrent cutoff, and cell voltage recovered cleanly between cycles.
- First-use warm-up discipline: Let the iron reach full tip temperature before touching any joint on the first three cycles. The heater element pulls peak current at start-up — attempting a joint during warm-up on an unconditioned Ni-MH cell can cause the BMS to trip before the battery has completed its first full charge cycle.
Why the ISO-TIP cuts out mid-solder joint
The heater element in the ISO-TIP 7733 draws a constant high current to maintain tip temperature. When a Ni-MH cell ages and its internal resistance rises, that draw creates a voltage sag that can push cell voltage below the BMS cutoff threshold — even when the battery still shows partial charge. The BMS reads this as an unsafe discharge condition and interrupts current flow mid-use. Replacing the cell resets that internal resistance and restores stable current delivery to the element.
Iron slow to recover temperature between joints
If the tip drops temperature after each joint and takes noticeably longer to recover, the cause is usually voltage sag under repeated heater cycling — the cell cannot sustain the output current fast enough to keep the element at rated temperature. On a degraded Ni-MH pack, cell voltage can drop to 1.0V or below under heater load even mid-charge. A fresh 3000mAh cell at 2.4V nominal holds voltage under load long enough to keep the recovery interval short. Charge the new battery to full before first use and confirm resting voltage reads above 2.3V before starting work.
