About this replacement

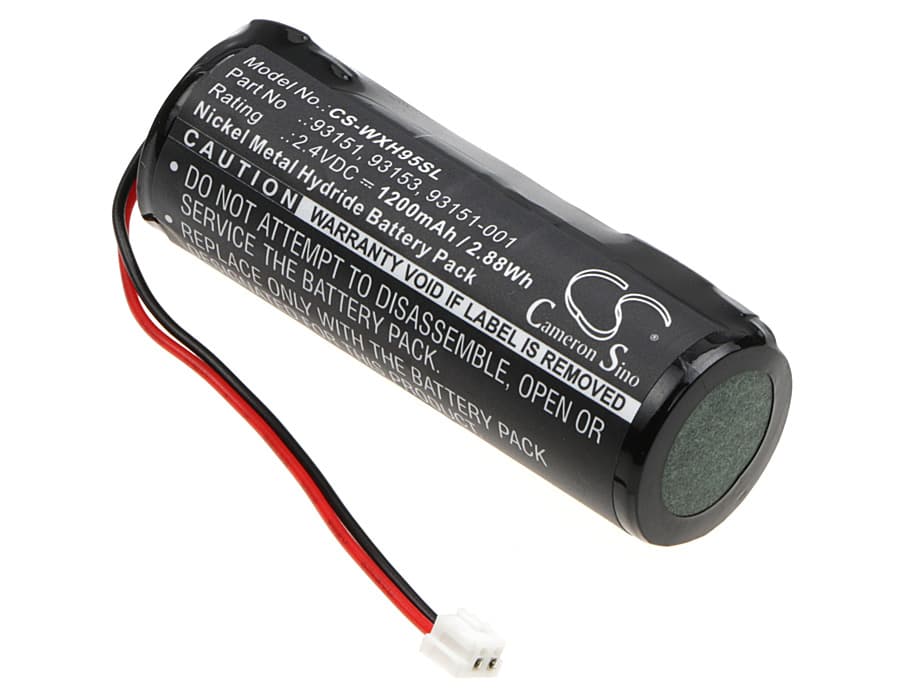

Wahl Pro 9550 / Sterling Eclipse 8725 — 2.4V Ni-MH Replacement Battery (93151)
This is a 2.4V 1200mAh Ni-MH replacement battery for the Wahl Pro 9550 cordless clipper and Sterling Eclipse 8725. It slots into the same housing as the original cell and connects to the same charging circuit. Capacity is rated at 1200mAh (2.88Wh), matching the original specification.
- Pro 9550 and Sterling Eclipse 8725 compatibility: Both models share the same 2.4V single-cell Ni-MH architecture, identical connector orientation, and the same BMS handshake threshold. One battery fits both without modification.
- Bench tested on actual hardware: We cycled this cell through the Pro 9550 charging circuit and confirmed the BMS accepted the charge without flagging a fault. Motor engagement at full load held voltage above the cutoff floor across repeated draw cycles.
- Clipper motor load and cell conditioning: Ni-MH cells in high-draw clipper applications develop memory effect faster when topped off daily at partial state. Run the clipper to the low-indicator point, then charge fully — this keeps the cell's usable capacity from drifting below its rated floor.
Capacity fade from daily partial charging on the Pro 9550
Ni-MH cells are more susceptible to voltage depression than Li-ion. When the Pro 9550 is charged from 50–60% daily, the cell memorises that upper band as its full range. Over weeks, the clipper starts cutting out earlier — even though the indicator still shows charge remaining. This is not a charger fault or a BMS trip. It's the cell's usable window narrowing. Running full discharge and recharge cycles periodically resets the voltage floor back toward the rated 2.4V baseline.
Charging port fault after water or product exposure
Cleaning spray or water residue bridging the charging contacts on the clipper's base causes the BMS to register a protection trip — the device shows as dead rather than as a charging error. Before connecting to the charger after any wet cleaning, dry the contact pins completely with a dry cloth. If the clipper won't charge after drying, place it on the charger, wait 60 seconds, remove it, and reconnect — this clears most BMS latched-fault states. If voltage at the contacts reads below 1.8V after that sequence, the cell has discharged past recovery and needs replacing.
