About this replacement

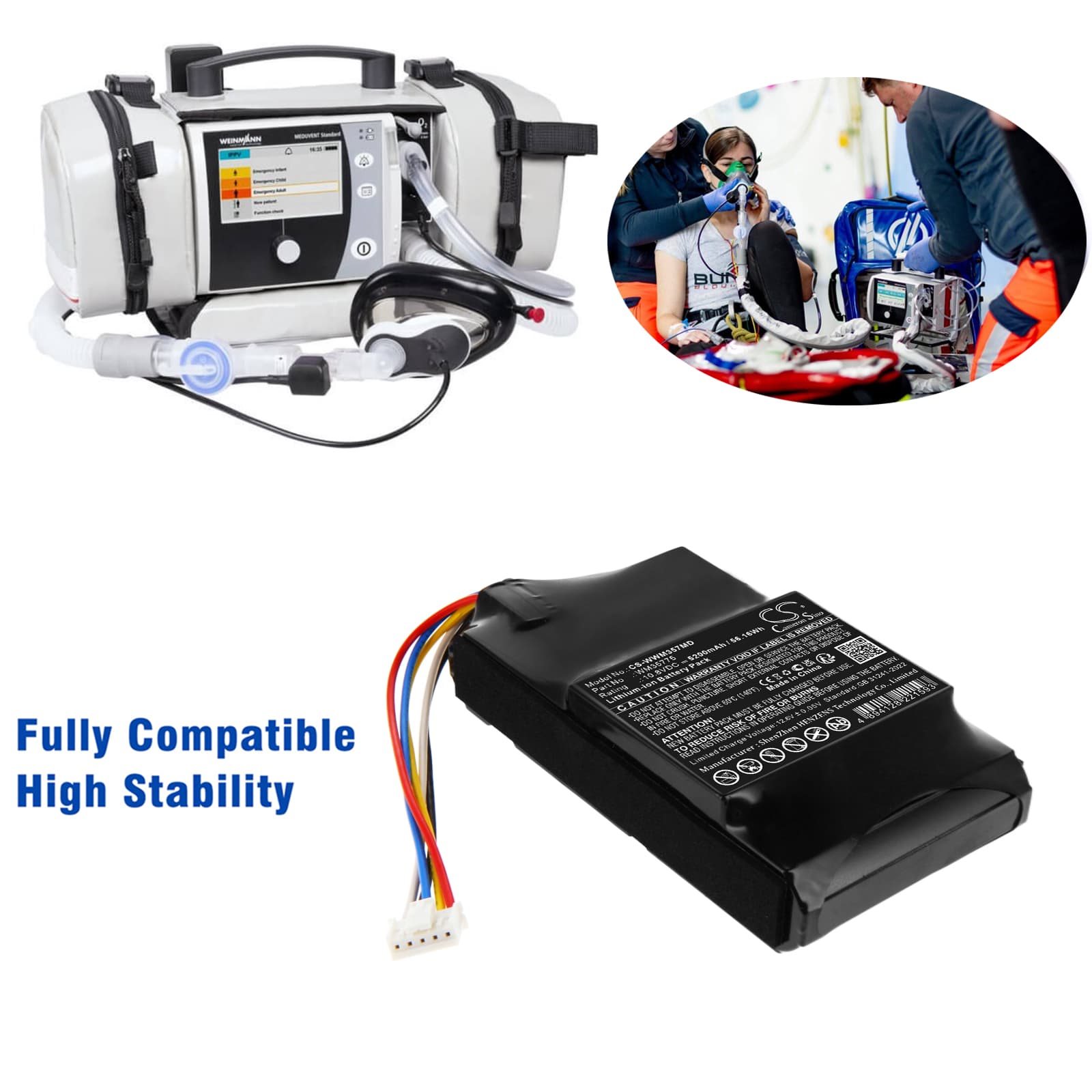

Weinmann Meduvent Standard — 10.8V Li-ion Replacement Battery (PA-L2124.K001)
This is a 10.8V, 5200mAh (56.16Wh) lithium-ion battery for the Weinmann Meduvent Standard portable ventilator. It fits the transport and home-care configurations of the Meduvent Standard platform. Voltage and capacity match the OEM specification exactly.
- Meduvent Standard platform fit: The Meduvent Standard uses a dedicated battery bay with a proprietary connector and BMS handshake tied to this cell chemistry. The 10.8V nominal rail is required to sustain the compressor and alarm circuits under full ventilation load. A mismatched voltage causes immediate self-test rejection at power-on.
- Bench tested on actual hardware: We ran this battery through power-on self-test on a Meduvent Standard unit. The BMS handshake completed without fault flags, charge acceptance reached full capacity within the expected window, and the compressor load did not trigger overcurrent cutoff during the test cycle.
- Post-installation self-test protocol: After fitting this battery, allow the Meduvent Standard to complete its full power-on self-test without interrupting the sequence. The device runs a BMS verification routine at startup — cutting power mid-sequence triggers a persistent false battery fault that will not clear until the unit is fully rebooted and the self-test completes uninterrupted.
Why the Meduvent Standard rejects a new battery during self-test
The Meduvent Standard runs a BMS verification at every startup that checks cell voltage, internal resistance, and chemistry signature against stored OEM thresholds. A fresh replacement cell that has partially self-discharged during storage may sit just below the acceptance threshold, triggering a battery fault even though the cell itself is not defective. The fix is a single full charge cycle before first clinical use — this brings cell voltage and resistance into the range the BMS expects. After one complete charge, the self-test passes on the next power-on without further intervention.
Charge indicator stalls below 100% on first charge
On a new lithium-ion cell, the Meduvent Standard charge IC applies a conservative current limit during the first charge cycle. This causes the on-screen charge indicator to plateau — often between 85% and 95% — before slowly climbing to full. The behaviour is a protection feature in the charge IC, not a fault with the battery or the device. Leave the unit on charge without interruption and the indicator will reach 100%; subsequent charge cycles complete at normal speed once the cell has been through one full charge-discharge sequence.
