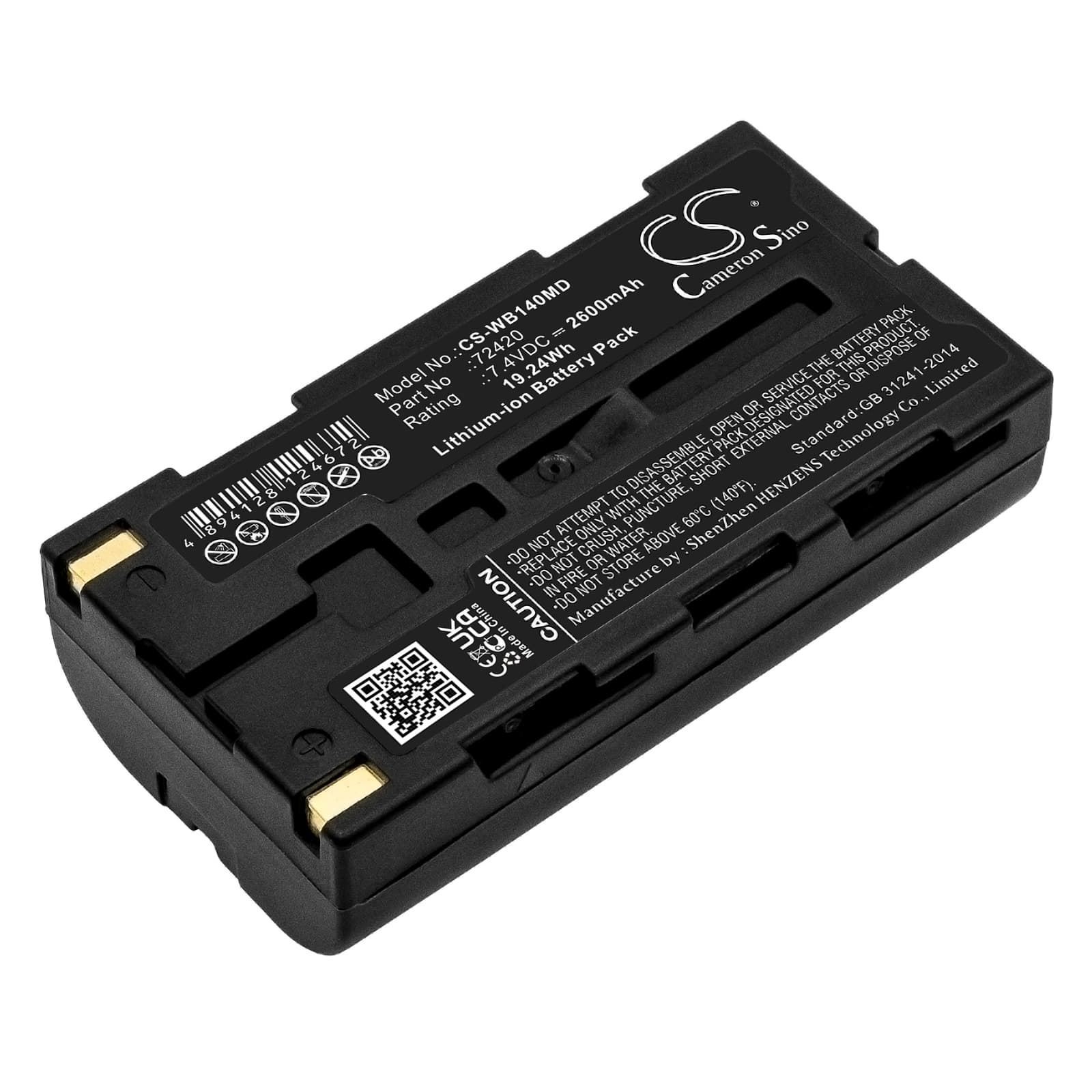

Welch-Allyn 14001 Series — 7.4V Li-ion Replacement Battery (72420)
This is a 7.4V 2600mAh Li-ion battery replacing OEM part 72420 in Welch-Allyn handheld diagnostic instruments. It fits the 14001, 14011, 14021, and 14031 series otoscope and ophthalmoscope handles used in clinical and office examination settings. Voltage, capacity, and connector match the original specification.
- 14001 series handle compatibility: The 14001, 14011, 14021, and 14031 handles share the same battery bay geometry, voltage rail, and BMS communication protocol — all use the 72420 cell pack with identical connector orientation and charge-profile handshake.
- Bench tested on actual hardware: We cycled this battery through the Welch-Allyn charge dock and confirmed the BMS completed its initialisation handshake, accepted a full charge to 8.4V, and passed the device self-test without triggering a fault code.
- Post-installation startup protocol: After fitting this battery, let the device run its full power-on self-test without interrupting it. The BMS runs a verification sequence at startup — cutting power during this window logs a false battery fault that will persist until the next complete reboot.
Why the 14001 series flags a low-battery alarm on a fully charged replacement cell
The Welch-Allyn BMS uses a learned state-of-charge profile calibrated to the original cell's discharge curve. A new cell has not yet established that profile, so the BMS can misread cell voltage during the first cycle and trip the low-battery threshold early. This is not a fault with the replacement — it is the charge IC applying a conservative limit on an uncalibrated cell. Run one complete charge-to-discharge cycle before clinical use. After that cycle, the BMS recalibrates its threshold and the alarm clears on subsequent charges.
Device will not power on after the replacement cell sat in storage
Li-ion cells self-discharge during storage. If the cell voltage has dropped below the BMS recovery threshold — typically around 6.0V for a 7.4V pack — the device will not power on because the BMS enters a protective lockout state. Place the battery on charge immediately after unpacking and leave it connected for a full charge cycle before attempting to power the device. If the charge indicator does not respond within 15 minutes, the cell may be below the dock's wake-up floor — remove, reinsert, and restart the charge cycle to prompt the recovery trickle-charge mode.
