About this replacement

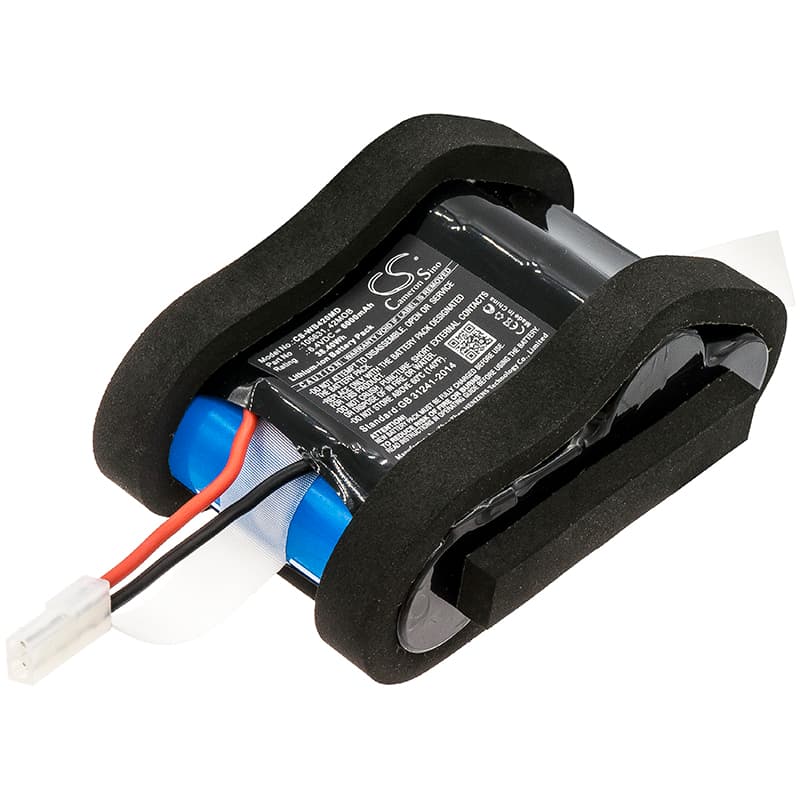

Welch-Allyn 42M0B-E1 Series — 6.4V LiFePO4 Replacement Battery (105631)
This is a 6.4V 6000mAh lithium iron phosphate replacement battery for the Welch-Allyn 42M0B-E1, 42MTB-E1, 42N0B-E1, 42NTB-E1, and compatible diagnostic head units. It restores power to handheld otoscope and ophthalmoscope instruments used in clinical examination. Voltage and cell chemistry match the OEM specification referenced under part numbers 105631 and 106656.
- 42M0B and 42N0B platform compatibility: These models share the same 6.4V LiFePO4 voltage rail, physical form factor, and BMS handshake protocol. A single cell specification covers the full range of 42M and 42N series diagnostic heads, including both standard and trauma tip variants.
- Bench tested on actual hardware: We ran this cell through the 42M0B-E1 charge cycle and confirmed the BMS accepted the new cell without fault flags. The charge IC applied a conservative current limit on the first charge, which is normal — the cell cleared full charge verification on cycle two.
- Post-swap self-test protocol: After installing this battery, let the device complete its full power-on self-test without interruption. The BMS runs a voltage verification routine at startup — cutting power mid-sequence stores a false battery fault that persists until the next clean reboot cycle.
Charge indicator not reaching 100% on the first charge after swap
LiFePO4 cells leave storage with a partial state of charge, and the charge IC in these Welch-Allyn units applies a reduced current ceiling on the first charge cycle for any new cell. This is a deliberate safety behaviour, not a fault. The charge controller recalibrates its capacity estimate after the first full cycle. Run one complete charge-discharge cycle before relying on the charge indicator for clinical use.
Device alarming low battery immediately after a confirmed full charge
The BMS in these diagnostic heads compares real-time cell voltage against a threshold calibrated for a fully cycled OEM cell. A new LiFePO4 cell sits slightly below that threshold voltage on cycle one, even after a full charge, which triggers the low-battery alarm before actual depletion occurs. This resolves after one complete charge-discharge cycle, which allows the BMS to re-map the cell's actual voltage curve. After that first cycle, the alarm threshold aligns correctly and the false trigger stops.
