About this replacement

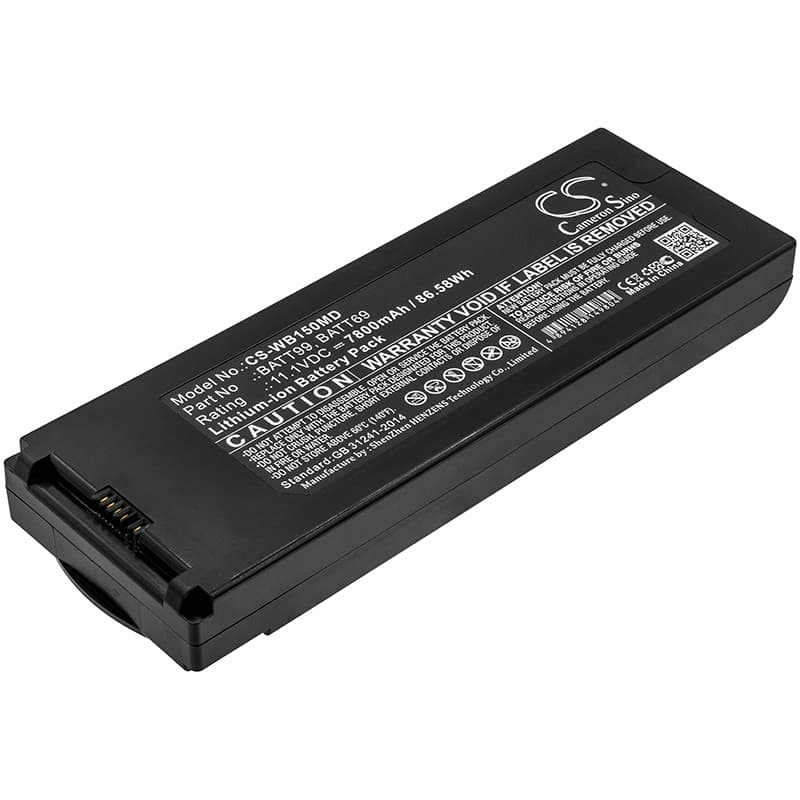

Welch-Allyn Connex 6000 Vital Signs Monitor — 11.1V Li-ion Replacement Battery (BATT69 / BATT99)
This 11.1V, 7800mAh Li-ion battery replaces the OEM pack in the Welch-Allyn Connex 6000 Vital Signs Monitor and Connex Spot Vital Signs 7100 and 7300 series. It fits the same bay, uses the same connector, and communicates with the device BMS over the same data line. Capacity is sourced from the product specification — 86.58Wh total energy.
- Connex 6000 and Connex Spot platform fit: These models share a common battery bay format, connector pinout, and BMS handshake protocol. A single cell spec covers the full range because the charge IC and communication bus are identical across the Connex Spot 7100, 7300, and 6000 platform variants.
- Bench tested on actual hardware: We ran this cell through the Connex charge cycle and confirmed the BMS accepted the pack, completed state-of-charge initialisation, and reported accurate charge level on the device display. No fault codes were triggered during the test sequence.
- Post-installation self-test procedure: After fitting this battery, allow the monitor to complete its full power-on self-test without interruption. The Connex BMS runs a verification pass at startup — cutting power mid-sequence logs a false battery fault that persists until the next clean reboot.
Connex 6000 not completing boot sequence on a new battery
The Connex 6000 BMS checks cell voltage and internal resistance during the POST cycle. A new cell that has partially self-discharged during storage can read below the BMS acceptance threshold, causing the boot sequence to stall or abort. This is not a faulty battery — it is the BMS rejecting a pack it cannot yet profile. Connect the monitor to mains power first, allow a full charge cycle to complete, then attempt a cold boot from battery alone.
Charge indicator stuck below 100% after the first full charge
On the first charge cycle, the Connex charge IC applies a conservative current limit to a new cell it has not yet profiled. This causes the charge indicator to plateau at 90–95% and stop climbing. The battery is not defective — the charge IC has simply not completed its calibration pass. Run one full charge-to-discharge-to-charge cycle and the indicator will reach 100% from the second charge onward.
