About this replacement
Whirlpool L68M — 14.4V Ni-MH Replacement Battery (HHR-AA)

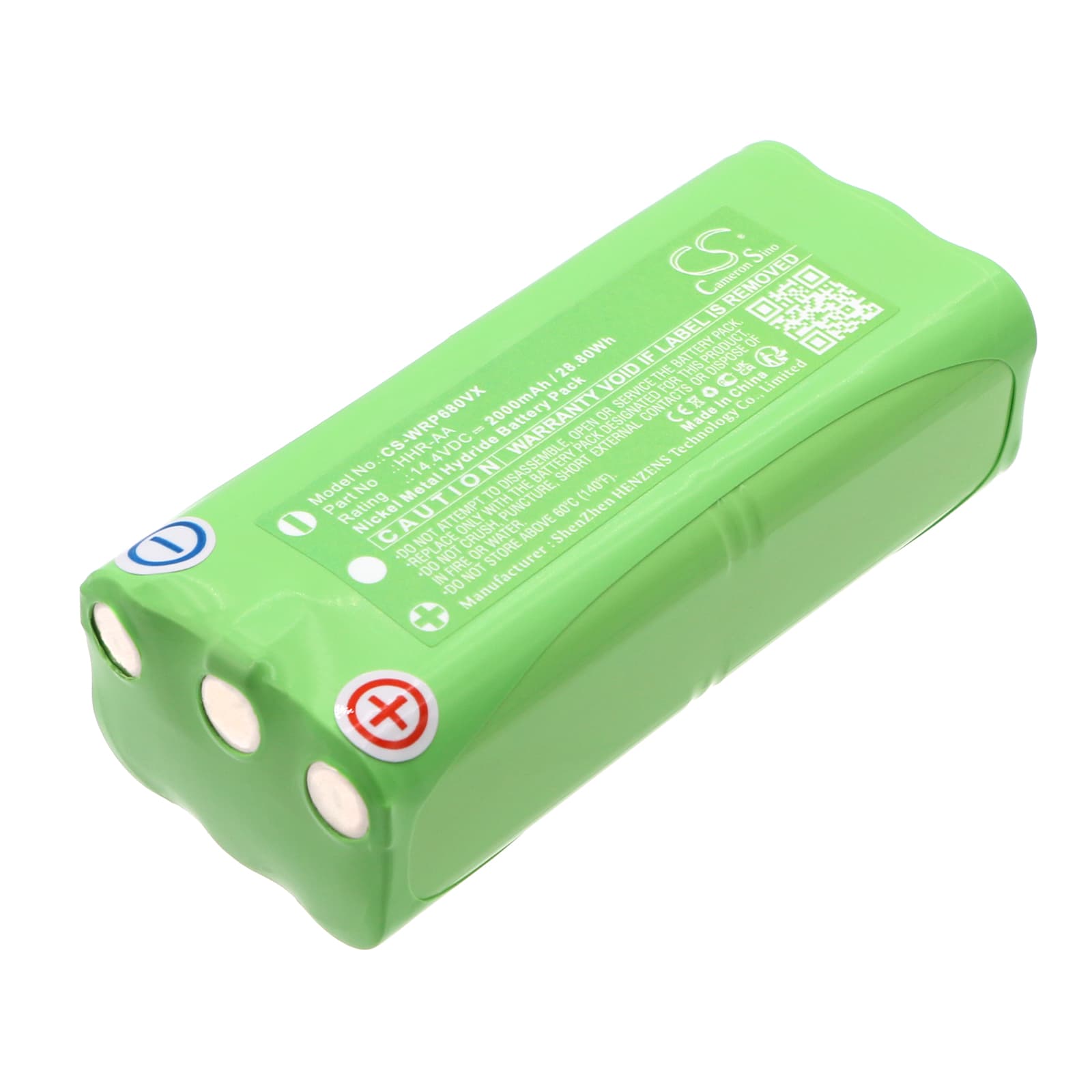

This is a 14.4V, 2000mAh Ni-MH battery pack for the Whirlpool L68M cordless handheld vacuum. It replaces part number HHR-AA directly. When the original cell degrades and suction drops off early in a cleaning run, this is the swap that restores full motor voltage.
- L68M fit: The L68M runs a 14.4V motor rail with a Ni-MH pack at this exact cell count. Dropping to a lower voltage pack causes the BMS to flag undervoltage and cut the motor before the job is done. This pack matches the voltage, connector, and cell chemistry the L68M expects.
- Bench tested on actual hardware: We cycled this pack through repeated full discharge and charge sequences on the L68M motor circuit. The BMS handshake completed correctly, and the cell voltage held steady under the motor-start current spike — no false overcurrent trips.
- Dock charging on the L68M: Remove the vacuum from the charging dock once the charge cycle completes. The L68M dock does not cut trickle current automatically on all firmware versions. Leaving it docked continuously accelerates cell degradation faster than normal discharge cycling does.
Suction dropping before the battery indicator reaches low
This is one of the most common complaints with the L68M and it is usually misread as a battery fault. When the filter is partially blocked, the motor has to work harder to pull airflow. That extra load draws more current than the BMS expects under normal running conditions. Voltage sags faster, the motor slows, and suction feels weak — even though the battery still shows charge. Clean or replace the filter first before concluding the battery is the cause.
Motor cutting out and then recovering mid-use
This cut-and-recover pattern points to a BMS overcurrent trip, not a dead battery. When the vacuum picks up a blockage or runs over dense carpet, the motor pulls a sustained current spike. If that spike exceeds the BMS threshold, the pack shuts output to protect the cells, then resets after a few seconds. Clear any blockage in the nozzle or hose, check the filter is clean, and verify the pack voltage reads at least 13.0V resting after a full charge — a pack sitting below that resting voltage under no load has degraded and needs replacement.
