About this replacement

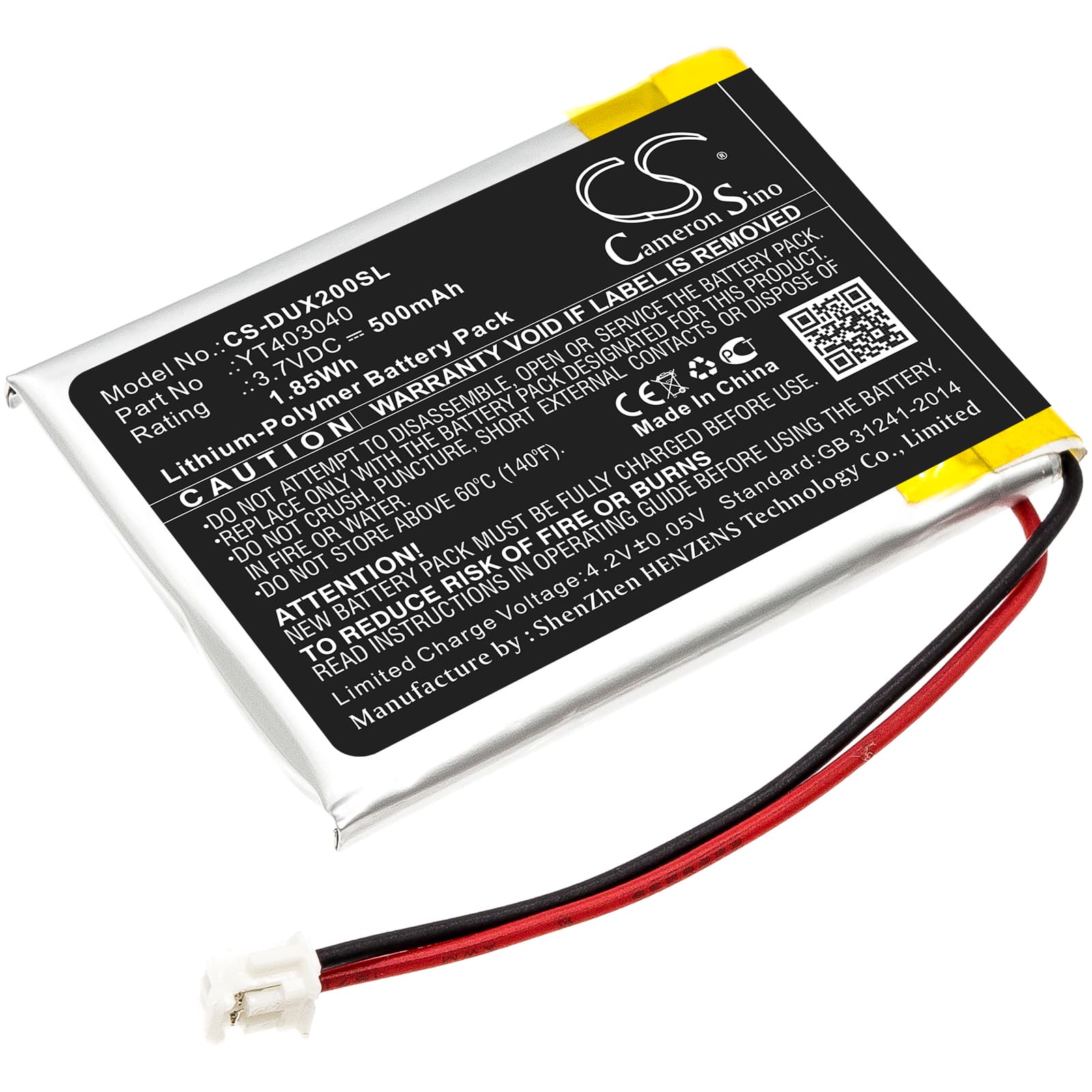

XDUOO X2 — 3.7V Li-Polymer Replacement Battery (YT403040)
This is a 3.7V, 500mAh lithium-polymer cell for the XDUOO X2 portable digital audio player. It replaces the original YT403040 cell and restores power to players that no longer hold a charge or fail to power on. Dimensions are 42.20 x 30.50 x 4.20mm — match these before ordering.
- X2 platform fit: The X2 uses a compact single-cell Li-Polymer configuration with a low-current BMS tuned for audio circuitry. The YT403040 cell matches the original connector pinout and physical envelope exactly, so the BMS handshake completes without modification.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the X2 board. The BMS accepted charge current immediately from a standard 5V USB source, and the protection circuit tripped correctly at the low-voltage cutoff threshold.
- Post-swap charge protocol: After fitting this cell, connect the X2 to a charger before attempting to power it on. Replacement cells often ship at storage voltage — around 3.6–3.7V — which can cause the player's protection circuit to stall startup if the device sat discharged for months before the repair.
Battery percentage jumping after cell swap on the X2
The X2 uses a voltage-threshold fuel gauge — it reads state of charge by measuring cell voltage, not by tracking coulombs. After fitting a new cell, the player has no charge history to reference, so the percentage display can jump or read inaccurately for the first few cycles. Run the battery down to the auto-shutoff point, then charge it fully without interruption. After two or three full cycles, the voltage curve the firmware reads stabilises and the percentage display settles.
Playback cutting out before the battery indicator shows empty
The X2's audio output stage draws a current spike during playback that the cell can't sustain once voltage sags near the bottom of the discharge curve. The player cuts audio before the indicator hits zero because the amp rail drops below its minimum operating voltage before the fuel gauge threshold triggers. This is normal behaviour with any Li-Polymer cell at end of discharge — it is not a fault with the replacement cell. If cutouts happen well before the gauge reads low, the cell may not have completed its first full cycle; charge to 100% and discharge fully once.
