About this replacement

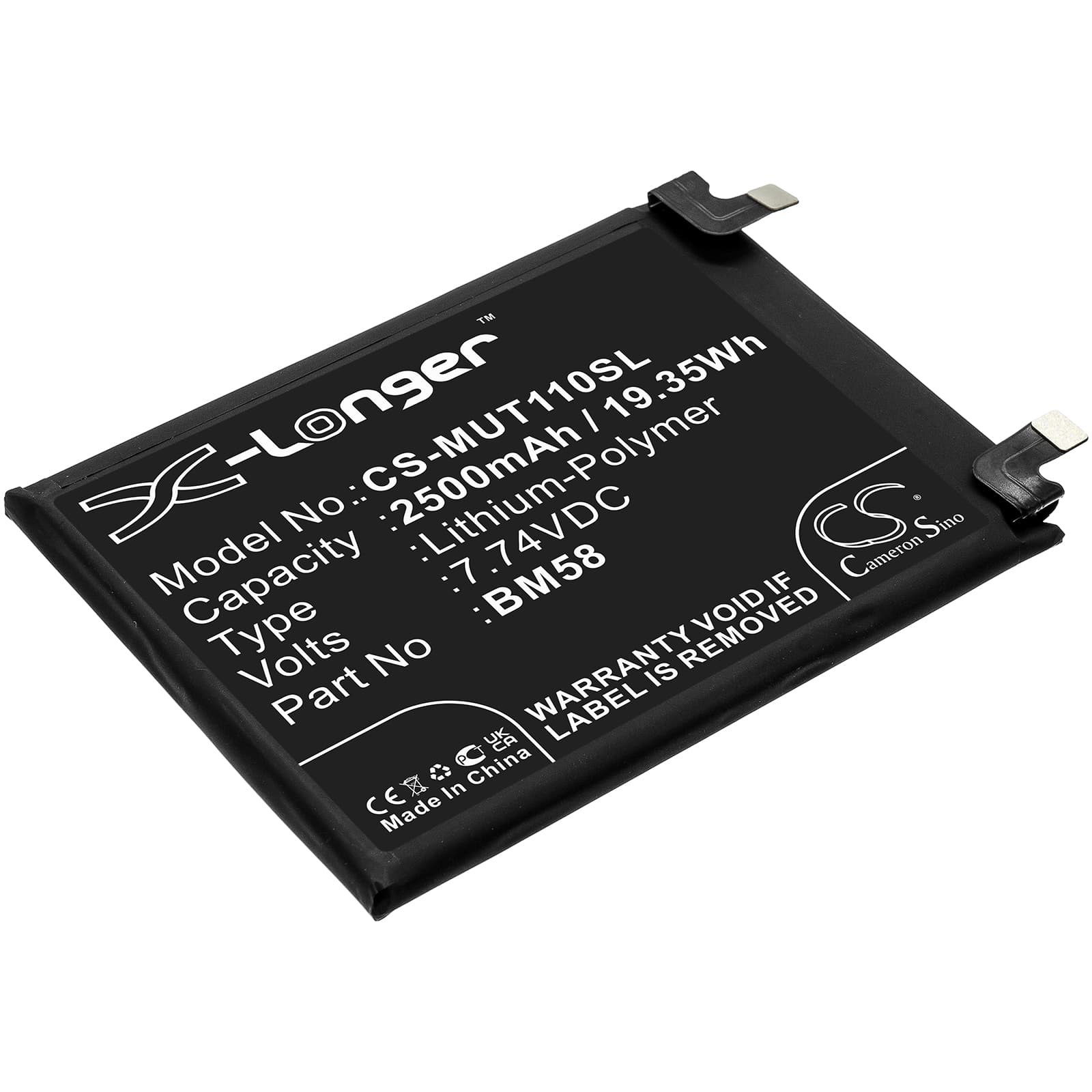

Xiaomi Mi 11T Pro 5G — 7.74V Li-Polymer Replacement Battery (BM58)
This is a 7.74V, 2500mAh Li-Polymer cell built to replace the BM58 battery in the Xiaomi Mi 11T Pro 5G (model 2107113SG). It fits the original battery cavity and connects to the same flex connector used by the stock cell. Capacity is rated at 19.35Wh.
- Mi 11T Pro 5G fit: The Mi 11T Pro 5G uses the BM58 cell on a shared voltage rail that powers the Snapdragon 888 SoC, the AMOLED display, and the 5G modem simultaneously. All three draw from the same cell at 7.74V. Any replacement must match that nominal voltage precisely — a mismatched cell trips the PMIC before the phone boots.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on a Mi 11T Pro 5G unit. The BMS accepted the cell on first insertion, charge current ramped normally through CC/CV stages, and the protection circuit tripped correctly at both high-voltage cutoff and low-voltage floor.
- Fuel gauge recalibration on first cycle: After installation, disable fast charging for one full discharge-charge cycle. The fuel gauge IC was calibrated to the old cell's discharge curve. Running one slow cycle at standard charge current lets the coulomb counter reset its reference points before 67W fast charging pushes high current into an uncalibrated cell.
Sudden shutdown at 20–30% on a replacement BM58 cell
The Mi 11T Pro 5G's Snapdragon 888 modem and display can spike combined draw past 6A under load. A new cell with an uncalibrated fuel gauge will report 25% remaining while the actual cell voltage has already sagged below the PMIC's trip threshold — roughly 3.2V per cell under that load. The phone shuts down not because the battery is empty, but because instantaneous voltage dropped too far. Running two full discharge-charge cycles with fast charging disabled recalibrates the coulomb counter and eliminates most of these premature cutoffs.
67W fast charging rejected on first cycle after cell swap
Xiaomi's 67W fast charge protocol negotiates charge current between the adapter and the phone's charge IC before ramping up. On the first cycle with a new cell, the BMS may present elevated internal impedance, causing the charge IC to fall back to standard 5V/2A rather than engage the high-current profile. This is not a fault — it is the charge IC acting conservatively against an uncalibrated cell. Complete one full charge cycle at standard rate first. On the second cycle, the fast charge handshake typically completes and 67W resumes normally.
