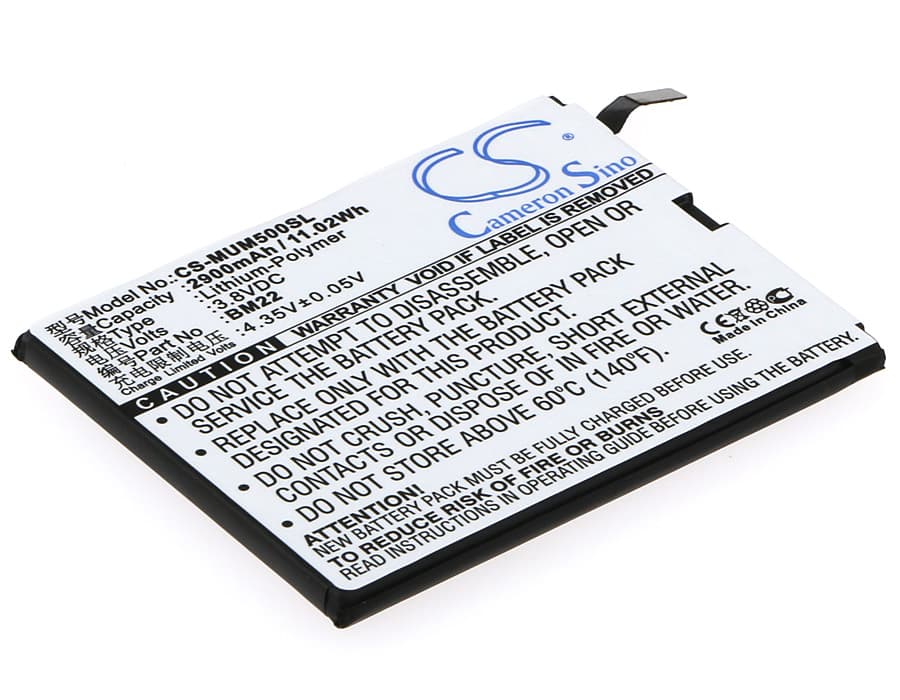

Xiaomi Mi 5 / Mi 5 Gold Edition — 3.8V Li-Polymer Replacement Battery (BM22)
The BM22 is a 3.8V, 2900mAh Li-Polymer cell for the Xiaomi Mi 5, Mi 5 Gold Edition, Mi 5 Gold Edition Dual SIM, and Gemini variants. It replaces the original internal battery when the existing cell degrades, drops voltage under load, or fails to hold a charge. Capacity is rated at 11.02Wh and matches the OEM specification for this platform.
- Mi 5 platform compatibility: The Mi 5 and its Gold Edition variants share the same BM22 footprint, connector pinout, and BMS handshake protocol. Swapping this cell across any of those sub-models does not require firmware changes or connector adapters.
- Bench tested on actual hardware: We ran the BM22 through charge and discharge cycles on a Mi 5 unit. The BMS accepted a full charge without triggering overvoltage cutoff, and the fuel gauge IC tracked cell voltage across the discharge curve without erratic reporting after the first complete cycle.
- First-cycle fast charge protocol: On first use after installation, disable fast charging for one complete discharge-charge cycle. This lets the fuel gauge IC recalibrate against the new cell's discharge curve before high-current fast charging pushes current into an uncalibrated cell.
Sudden shutdown at 20–30% on the Mi 5 after a cell swap
A new BM22 cell has a discharge curve the fuel gauge IC has not yet mapped. Under sudden high-draw loads — modem transmission bursts or screen brightness spikes — the cell voltage can drop sharply below the threshold the IC expects for that reported percentage. The phone interprets this as an undervoltage event and shuts down even though the display showed charge remaining. One full slow discharge-charge cycle recalibrates the coulomb counter and the shutdowns stop.
Device not powering on after the BM22 sat in storage
Li-Polymer cells self-discharge during storage. If the BM22 dropped below approximately 2.5V, the BMS enters lockout mode and blocks current flow to protect the cell from deep-discharge damage. The phone will show no signs of life even connected to a charger. Connect the phone to a wall adapter — not a USB port — and leave it untouched for 20–30 minutes. The BMS trickle-charges the cell back above the recovery threshold, typically 3.0V, before allowing normal charge current to resume.
