About this replacement

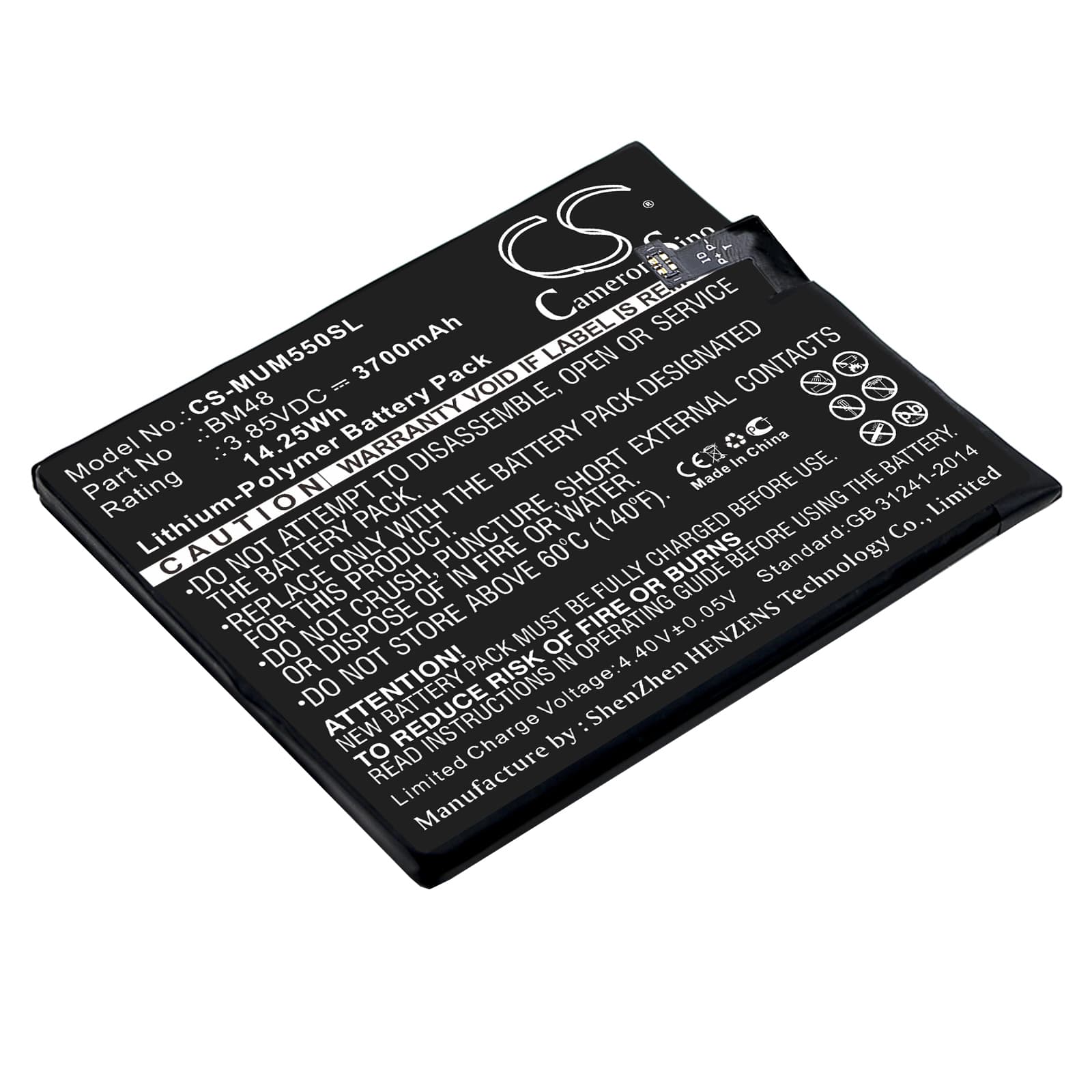

Xiaomi Note 2 Standard — 3.85V Li-Polymer Replacement Battery (BM48)
This is a 3700mAh Li-Polymer cell at 3.85V nominal, replacing the OEM BM48 battery in the Xiaomi Note 2 Standard (model 2015211). It fits the internal bay directly and connects to the same flex cable and fuel gauge IC as the factory cell. Dimensions are 76.80 × 64.50 × 4.30mm — confirm clearance before ordering if your unit has been previously repaired.
- Note 2 Standard fit: The 2015211 variant uses a dedicated BM48 cell with a specific connector orientation and BMS signal line. This replacement matches that pinout, so the fuel gauge IC on the board can read cell voltage and state-of-charge correctly from the first boot.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the Note 2 Standard board. The BMS accepted the handshake on first connection, charge termination triggered correctly at 4.35V, and low-voltage cutoff engaged as expected under load.
- Fuel gauge recalibration on first use: After installation, disable fast charging and run one full discharge down to automatic shutdown, then charge uninterrupted to 100%. This gives the coulomb counter a clean reference cycle against the new cell before fast-charge current is applied to an uncalibrated state-of-charge curve.
Sudden shutdown at 20–30% on the Note 2 Standard after a cell swap
A new cell has a slightly different discharge curve than the aged cell the fuel gauge IC trained on. At moderate-to-heavy load — screen at full brightness, mobile data active, or GPS running — the cell voltage can drop below the board's cutoff threshold before the percentage readout catches up. The phone shuts off even though the gauge still shows charge remaining. One full discharge-charge cycle with fast charging off resets the coulomb counter and aligns the percentage display to the actual cell curve.
Phone won't power on after the BM48 sat in storage for several months
Li-Polymer cells self-discharge during storage. If the cell voltage drops below approximately 2.5V per cell, the BMS trips into lockout to prevent damage and the phone shows no response when you press the power button. Connect the phone to a slow 5W charger and leave it for 20–30 minutes before attempting to power on — the BMS needs a trickle current to recover enough voltage to release the lockout. Do not use a fast charger for this step; high current into a deeply discharged cell can trip the protection circuit again immediately.
