About this replacement

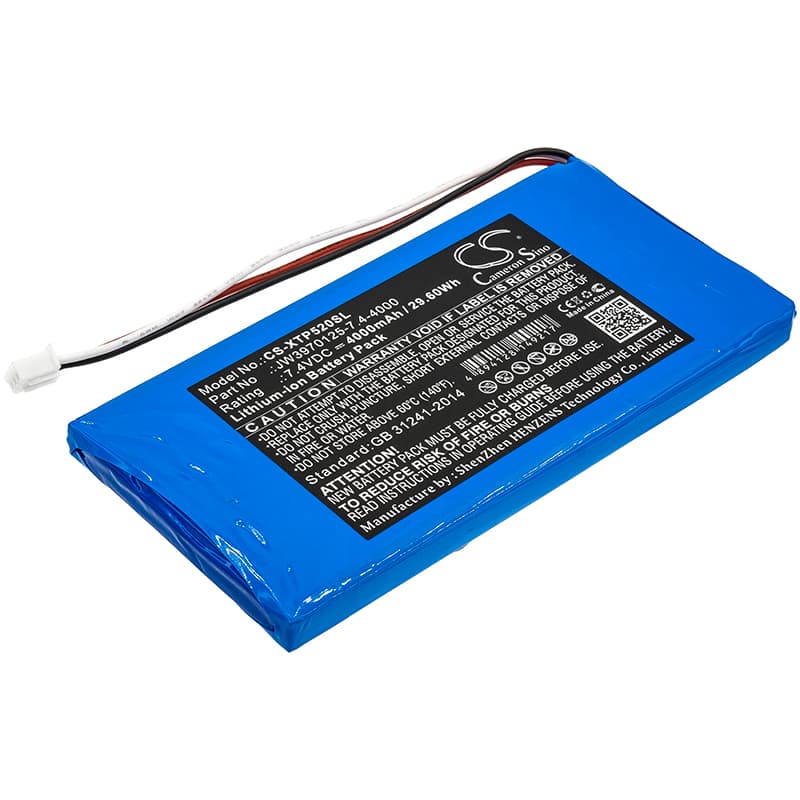

XTOOL P52 — 7.4V Li-ion Replacement Battery (JW3970125-7.4-4000)
This 7.4V 4000mAh Li-ion battery is a direct replacement for the XTOOL P52 automotive diagnostic scanner. It fits the P52 specifically — a handheld OBD tool used by technicians for DTC reading, system scans, and live vehicle data. Capacity is 29.6Wh, matching the original specification.
- P52 platform fit: The P52 uses a slim 7.90mm cell stack with a BMS that handshakes on the same voltage rail as the original JW3970125-7.4-4000. The connector orientation and cell dimensions (125.30 x 69.33 x 7.90mm) match the chassis bay without modification.
- Bench tested on actual hardware: We ran this cell through the P52 boot sequence and full OBD session load. The BMS held stable voltage through CAN bus polling cycles and did not trip under the scanner's peak draw during module scans.
- Data export before swap: Export all saved vehicle profiles and session logs before removing the battery. The P52 holds vehicle data in RAM backed by the main battery — cutting power without exporting first will erase stored profiles permanently.
Why the P52 won't boot after a battery swap
The P52 has a minimum boot threshold — if the replacement cell ships below that voltage, the scanner will not power on even after pressing the button. This is a BMS protection state, not a fault with the unit. Plug the scanner into its charger for at least 20 minutes before attempting to power on. Once the cell clears the boot threshold, the P52 will start normally.
Wireless connection dropping mid-diagnostic session
The P52's Bluetooth and Wi-Fi stack draws from the same cell that powers the display and processor. When battery voltage sags under combined load — particularly during active module scans — the wireless link drops before the battery indicator shows critical. This is voltage sag, not a defective radio. A fresh, fully charged cell resolves the sag. If drops persist on a charged battery, check that the scanner firmware is current, as older builds have less aggressive power arbitration.
