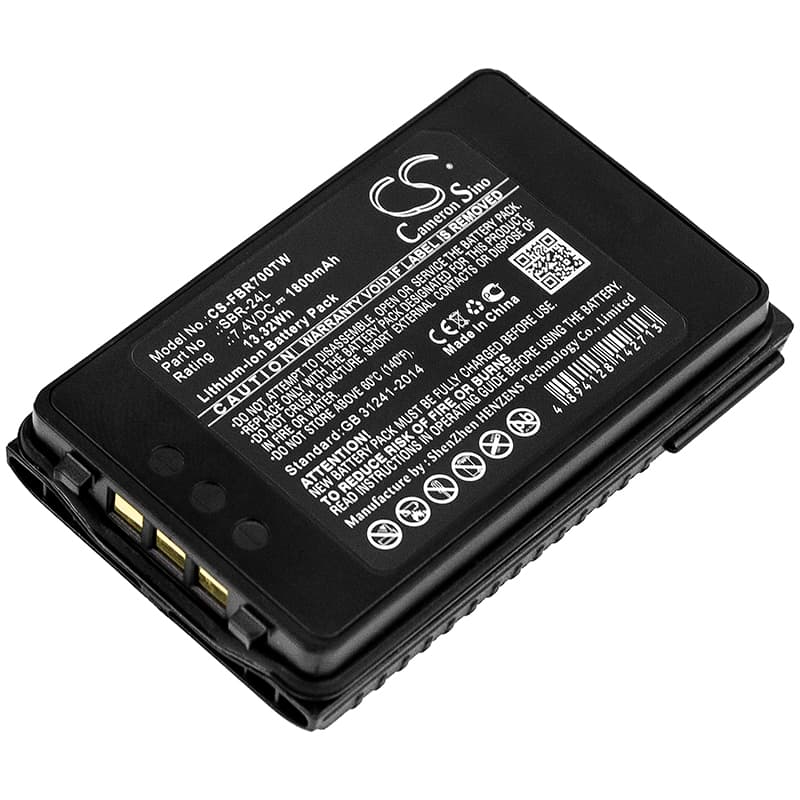

Yaesu FT-70D / FT-70DR / FT-70DS — 7.4V Li-ion Replacement Battery (SBR-24L)
This 7.4V 1800mAh Li-ion pack replaces the Yaesu SBR-24L and SBR-24LI on the FT-70D, FT-70DR, and FT-70DS dual-band handheld transceivers. It slots into the same battery bay and connects to the radio's charging and BMS contacts without modification. Capacity is 1800mAh (13.32Wh) — identical to the original Yaesu spec.
- FT-70D / FT-70DR / FT-70DS compatibility: All three variants share the same battery bay geometry, contact layout, and 7.4V rail. The BMS in this pack communicates the same charge-acceptance and cutoff thresholds the radio expects, so the bar indicator and charge circuit behave the same as with the original pack.
- Bench tested on actual hardware: We cycled this pack through transmit loads on the FT-70D platform. The BMS held cutoff correctly under sustained PTT draw on both VHF and UHF, and the charger dock accepted the new pack without fault on the first insertion cycle.
- First-insertion contact check on the FT-70D dock: If the dock LED shows a fault on initial seating, remove the pack and wipe the gold contact strip with a dry cloth before reseating. The FT-70D charger runs a contact-integrity check before initiating the charge cycle — a single film of oxidation or handling residue on new cells is enough to trigger a rejection.
Why the FT-70D bar indicator reads lower than expected on a fresh pack
New Li-ion cells ship at storage voltage — typically around 3.6–3.7V per cell, which puts a 7.4V pack near 7.2V at rest. The FT-70D's voltage-threshold bar indicator maps that resting voltage to one or two bars rather than full. This is a voltage-level reading, not a capacity fault. Run the pack through one full charge on the Yaesu dock and the indicator will reflect the actual charged state of 8.4V across both cells.
FT-70D cuts out or drops audio mid-transmission on a new SBR-24L
On the first few transmit cycles, a new pack's BMS is conservative — if the transmit current spike pulls the cell voltage below the BMS's lower protection threshold momentarily, the pack trips and the radio drops out. This typically clears after two or three full charge-discharge cycles as the cells settle and internal impedance drops. If the cutout persists past the third cycle, check that the battery contacts on the radio body are clean and making firm contact — a high-resistance connection amplifies the voltage sag under TX load. Target a resting pack voltage of 8.2V or above before extended transmit use.
