About this replacement

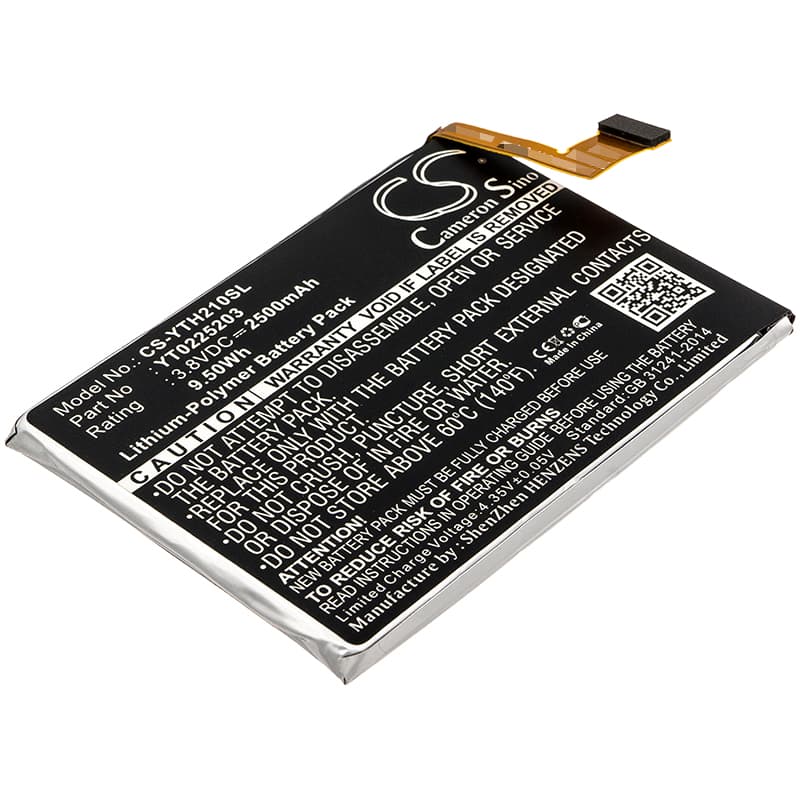

Yota YotaPhone 2 — 3.8V Li-Polymer Replacement Battery (YT0225023)
This 3.8V, 2500mAh Li-Polymer cell is a direct swap for the OEM YT0225023 battery in the YotaPhone 2 dual-screen smartphone. It restores full operational capacity for both the primary LCD and secondary e-ink display. Dimensions are 73.30 × 54.10 × 4.30 mm — verify clearance before fitting.
- YotaPhone 2 dual-display power rail: The YotaPhone 2 runs two active display controllers from a single cell. The e-ink panel draws continuous low-level current even in standby, which accelerates cell degradation on aged batteries. A fresh cell at full capacity handles this dual-load architecture without voltage sag under normal use.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on a YotaPhone 2 unit. The BMS accepted charge handshake without error flags, and the protection circuit tripped correctly at the low-voltage cutoff threshold — no thermal events observed.
- Fuel gauge recalibration on first use: Disable fast charging for the first complete discharge-charge cycle after installation. This lets the fuel gauge IC map the new cell's actual discharge curve before high-current charging begins. Skipping this step causes the OS to report inaccurate percentages for several cycles.
Sudden shutdown at 20–30% on the YotaPhone 2 after a cell swap
The YotaPhone 2's modem and dual display controllers pull current simultaneously during calls and screen refreshes. If the fuel gauge IC is still calibrated to the old cell's discharge curve, it misreads remaining capacity and allows the phone to operate past the point where the new cell can sustain voltage under load. The cell voltage drops below the BMS cutoff threshold — typically around 3.2V — and the phone shuts off even though the OS showed charge remaining. One full discharge-charge cycle with fast charging disabled forces the coulomb counter to recalibrate against the actual cell.
Phone not powering on after the replacement battery sat in storage
Li-Polymer cells self-discharge in storage, and if the replacement cell dropped below approximately 2.5V before installation, the BMS may have entered a lockout state to prevent charging a deeply discharged cell. The phone will show no response — no boot, no charge indicator. Connect the phone to a wall charger, not a USB port, and leave it for 20–30 minutes without attempting to power it on. Most BMS circuits allow a slow trickle recovery above 2.5V, after which normal charging resumes.
