About this replacement

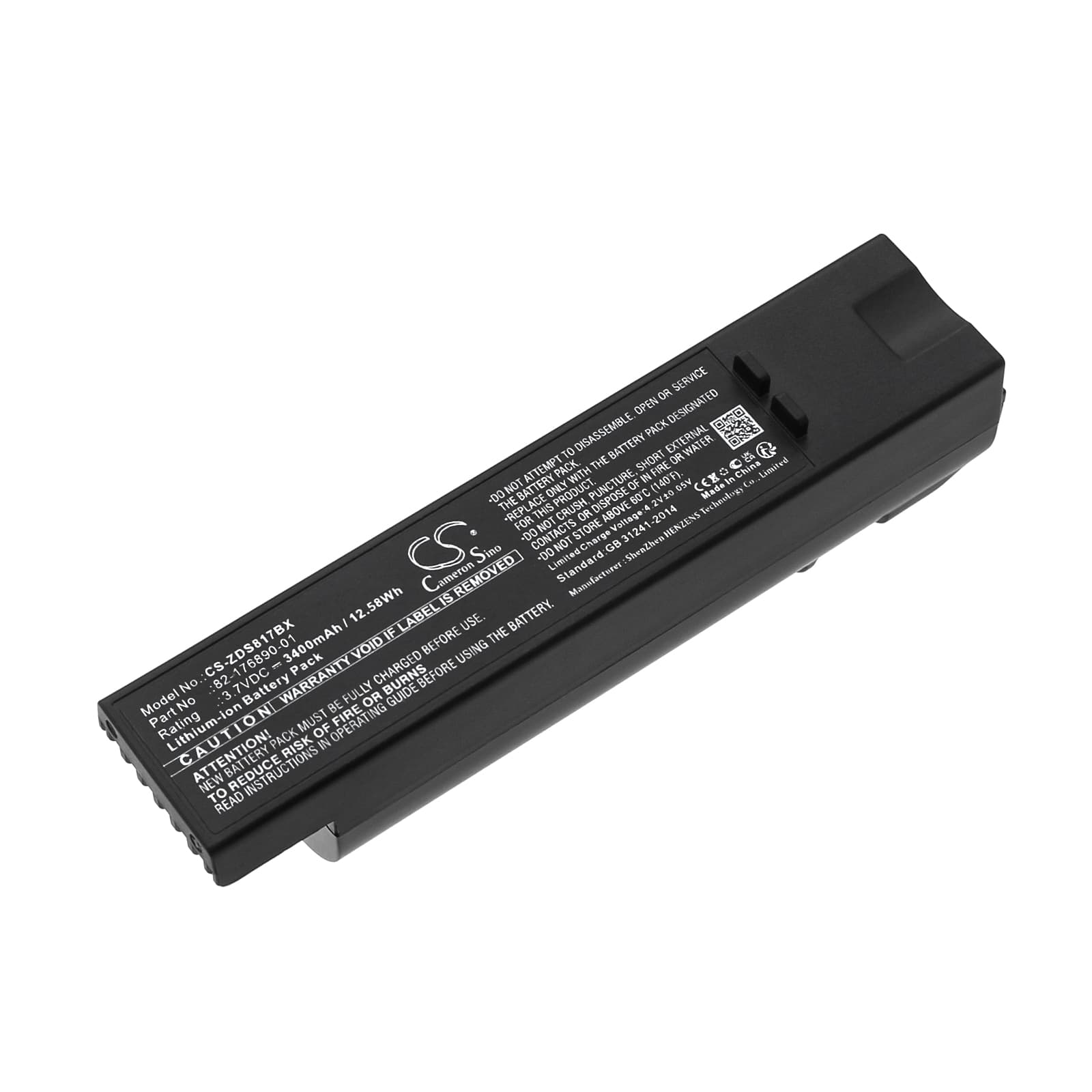

Zebra DS8100 / DS8178 Series — 3.7V Li-ion Replacement Battery (82-176890-01)
This 3.7V, 3400mAh Li-ion battery replaces the OEM pack in the Zebra DS8100, DS8170, and DS8178 handheld barcode scanners. These units are common in retail and logistics environments where scanners run continuous shift cycles. Capacity figure is 3400mAh — matched to the original OEM specification.
- DS8100 / DS8170 / DS8178 platform fit: All three models share the same battery bay geometry, contact pin layout, and BMS communication protocol, which is why a single cell services the whole DS8100 family. The pack negotiates charge state with the host cradle over the same data line used across this scanner generation.
- Bench tested on actual hardware: We cycled this pack through the DS8178 charging cradle and monitored the BMS handshake on contact. The protection circuit responded correctly to both trickle-phase entry and full-charge termination — no false cutoff events during the charge cycle.
- First-shift cradle cycle: After installing this pack, place the scanner in its charging cradle for a complete charge cycle before using it on the floor. The scan trigger inrush current is at its highest when the cell is near minimum voltage — a fully charged cell prevents false BMS trips during the first heavy scan burst of the shift.
Cradle showing charging error on a new DS8178 pack
A charging error on a new pack is almost always a contact resistance issue, not a fault with the cell itself. The DS8178 cradle reads battery state through the data pin alongside the charge terminals — dirty or oxidised contacts break that signal and the cradle throws an error rather than initiating charge. Remove the pack, wipe the gold contacts on both the battery and the cradle dock with a dry cloth, then reseat firmly. If the error clears, you had a contact issue — not a faulty battery.
Scanner losing wireless connection during rapid scan bursts
The DS8178 pulls current simultaneously from its wireless radio and the scan trigger during a fast burst sequence. If the cell voltage sags under that combined load, the radio drops its connection before the scanner throws a low-battery warning. This is most likely when the pack is below 20% charge or is an aged cell with reduced capacity. Charge the pack to full before high-frequency scanning sessions and check that the battery indicator shows at least two bars before starting a heavy pick-and-pack run — at 3.6V the radio link should stay stable under normal burst load.
