About this replacement

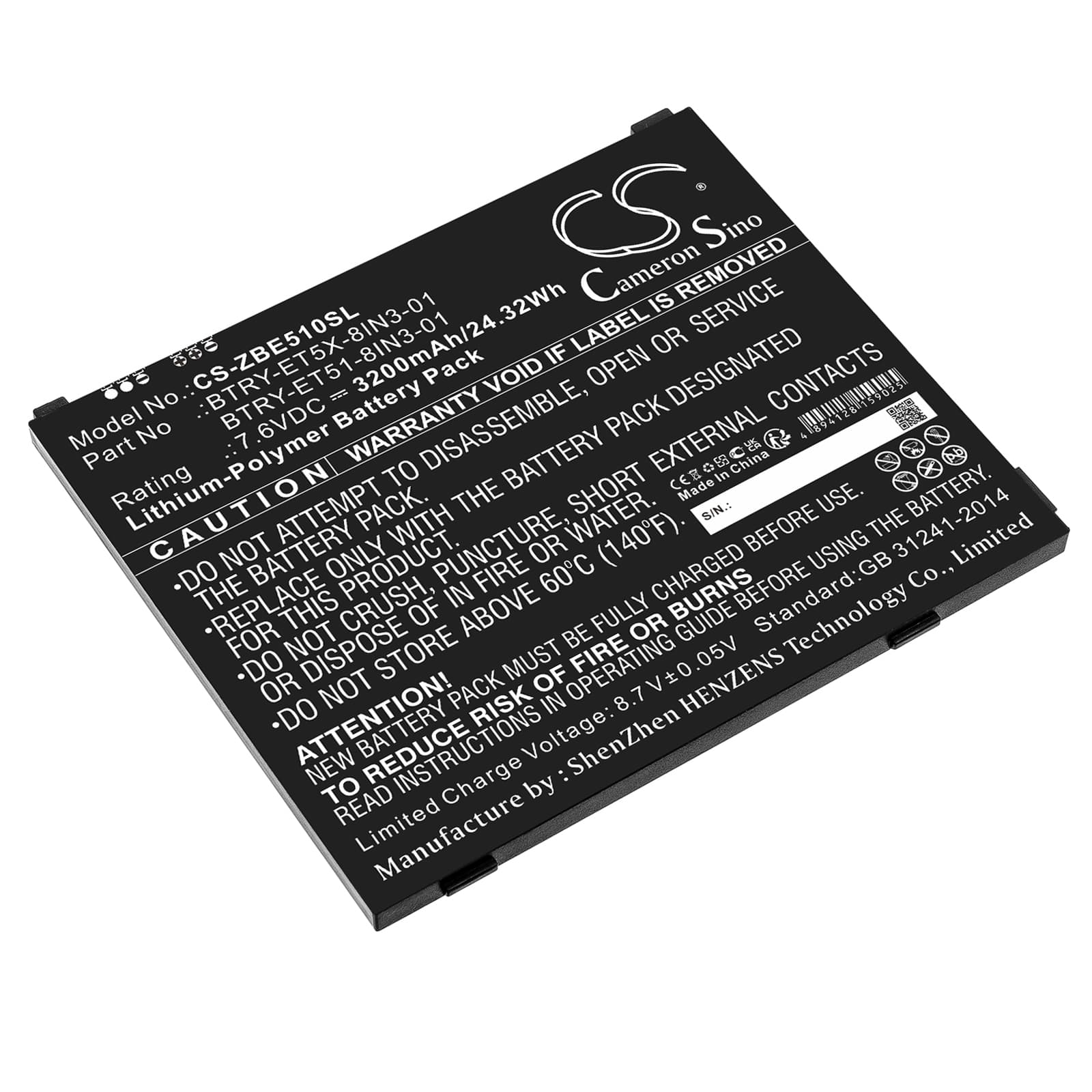

Zebra ET51 Windows OS — 7.6V Li-Polymer Replacement Battery (BTRY-ET5X-8IN3-01)
This 7.6V, 3200mAh Li-Polymer battery replaces the original power cell in the Zebra ET51 Windows OS rugged tablet. It fits the ET51AT-W12E, ET51AE-W12E, ET51CE-G21E-00NA, and related ET51 variants. Capacity figures are taken directly from the product specification — 24.32Wh cell rated at 3200mAh.
- ET51 Windows OS platform fit: The ET51 series shares a unified battery bay across its 8-inch Windows SKUs. The connector pinout, BMS handshake protocol, and physical cell dimensions — 114.10 x 99.62 x 5.80mm — are consistent across the ET51AT-W12E, ET51AE-W12E, and ET51CE-G21E-00NA, which is why one cell covers the full group.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on an ET51 Windows unit. The BMS accepted the cell without error flags, charge current stepped correctly from bulk to taper, and the Windows battery driver registered the cell at full capacity without requiring manual driver intervention.
- Post-swap fuel gauge reset: After installing this battery, run one full discharge to automatic shutoff, then charge uninterrupted to 100%. This single cycle recalibrates the fuel gauge IC against the new cell and corrects the inaccurate percentage readings that commonly appear after a swap.
ET51 shutting down at 15–25% remaining after battery replacement
The ET51 runs a combined load of display, WiFi, and background Windows processes that creates a sharp voltage draw spike. A new cell that hasn't completed one full calibration cycle has a fuel gauge IC still mapped to the old cell's discharge curve. When voltage drops steeply under that combined load, the BMS sees the voltage floor before the percentage counter catches up and triggers an emergency cutoff. Run a full discharge-to-shutoff cycle, then charge to 100% uninterrupted. After that single cycle the fuel gauge tracks the new cell's curve and the early cutoff stops.
Fast charge not available after swapping the ET51 battery
The ET51's charge IC uses a negotiation handshake during the first accepted charge cycle to confirm cell chemistry and set the fast-charge current threshold. On a fresh cell, the IC defaults to standard charge rate until that handshake completes. Plug into the Zebra-approved cradle or USB-PD charger and allow one full charge cycle to complete without interruption. Fast charge availability is confirmed once the charge IC logs an accepted cycle — check the Windows battery report after that cycle to verify the charge rate has updated.
