About this replacement

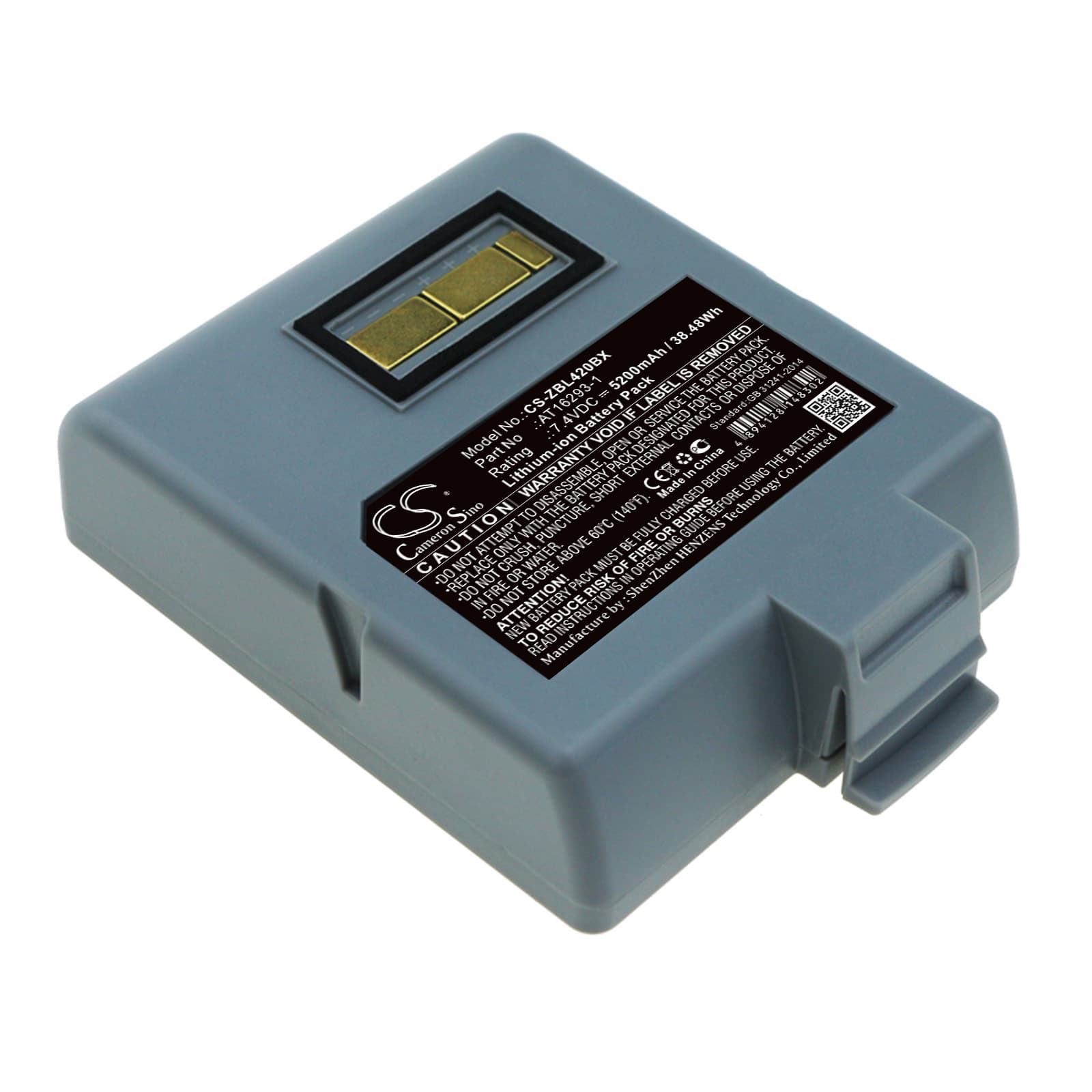

Zebra QL420 / QL420+ Series — 7.4V Li-ion Replacement Battery (AT16293-1)
This is a 7.4V, 5200mAh Li-ion battery for the Zebra QL420, QL420+, and QL420 Plus mobile thermal label printers. It replaces OEM part AT16293-1 and slots directly into the battery bay on all three variants. At 38.48Wh, it carries enough capacity for sustained field use across retail, logistics, and healthcare environments away from AC power.
- QL420 / QL420+ / QL420 Plus compatibility: All three models share the same battery bay geometry, connector pinout, and BMS handshake protocol — one cell fits the full lineup without modification or adapter.
- Bench tested on actual hardware: We cycled this battery through the QL420's print-and-feed sequence under continuous load. The BMS held voltage within spec through the thermal head warming cycle and confirmed correct charge termination at 8.4V.
- First-deploy print sequence: After installing, charge to full and run five consecutive label prints before deploying in the field. The QL420's paper feed motor draws a specific current profile on startup — running a short print sequence lets the BMS settle its current thresholds for the new cell and prevents false low-battery cutoffs during the first working shift.
Why the QL420 stalls mid-job after sitting unused for weeks
Li-ion cells self-discharge during storage. If the QL420 sits long enough, the battery voltage drops below the BMS minimum threshold — typically around 6.0V for a 7.4V nominal cell — and the printer will refuse to initialise the feed motor even when plugged into a charger. The charger port on the QL420 routes through the BMS, so a deeply discharged cell may not trigger a charge cycle at all. In this state, a slow pre-charge from a compatible Li-ion recovery charger at 0.1C is needed to bring the cell back above the BMS re-entry threshold before normal charging resumes.
Print lines fading or printing blank labels on a charged battery
The QL420's thermal print head requires a stable voltage supply to maintain consistent head temperature across the full print width. When cell capacity has degraded, voltage sags under the thermal head load, causing uneven heating — this shows as faded lines, missing text, or blank sections mid-label. The fault is not the head itself; it is insufficient current delivery from a worn cell. Replacing the battery and confirming charge voltage reads at or above 8.2V at rest will restore consistent print output.
