About this replacement

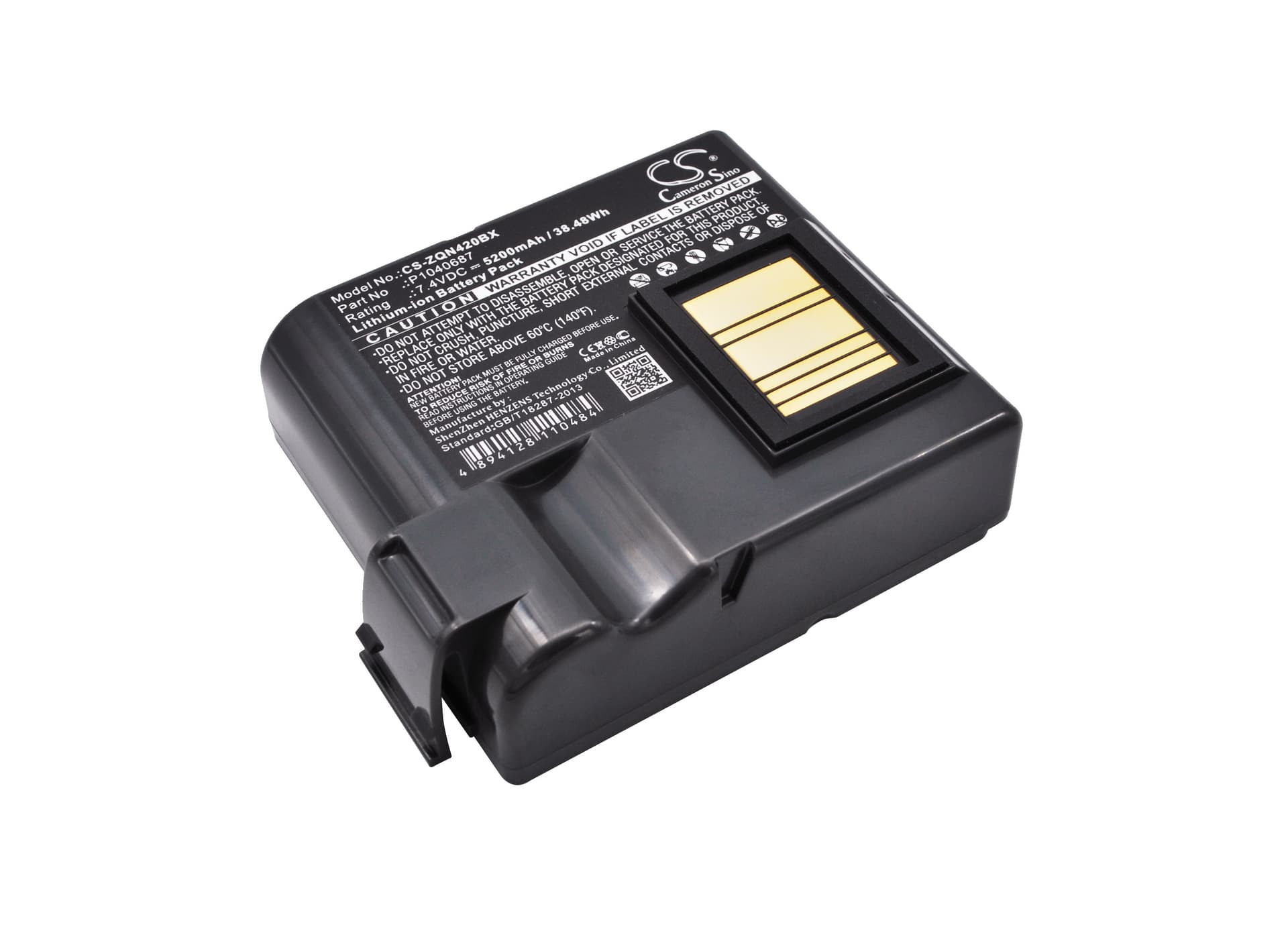

Zebra QLN420 / ZQ630 — 7.4V Li-ion Replacement Battery (P1040687)
This 7.4V, 5200mAh Li-ion battery replaces the OEM pack in the Zebra QLN420 and ZQ630 mobile printers. Both are portable thermal printers used in retail, logistics, and field service where workers print labels and receipts away from fixed power. It also cross-references part numbers P1050667-016 and BTRY-MPP-68MA1-01.
- QLN420 and ZQ630 compatibility: Both models share the same 7.4V battery bay, connector pinout, and BMS handshake protocol. Swapping between these two printers with one spare pack works without modification.
- Bench tested on actual hardware: We ran this pack through the QLN420 power-on sequence and a sustained print job. The BMS held voltage within spec across the thermal head, paper feed motor, and radio module simultaneously — no mid-job cutoff or voltage collapse observed.
- First-deployment print sequence: After installing, charge fully and print five test labels before putting the unit into active service. The paper feed motor draws a sharp current spike on each feed cycle, and running that sequence lets the BMS log the correct current profile for the new cell — preventing false low-battery cutoffs during early use.
Why the QLN420 refuses to print after sitting unused for weeks
Lithium-ion cells self-discharge during storage. If the pack drops below roughly 6.0V — the QLN420's minimum motor-drive threshold — the printer powers on but immediately rejects print jobs because the BMS blocks current to the thermal head and feed motor. This is not a printer fault. Place the battery on charge for a full cycle before attempting any print jobs. If the charge LED does not light within two minutes of connecting, the cell may have dropped below the BMS recovery floor and needs a trickle-charge wake cycle first.
Faded, patchy, or inconsistent print output mid-job
The QLN420's thermal print head needs a stable voltage supply to hit and hold the correct head temperature. When battery voltage sags under load — typically below 6.8V on a degraded or partially charged pack — head temperature drops mid-line, and the result is faded or missing dots on the label. This is not a head fault and replacing the printhead will not fix it. Check the battery charge level first. If output improves at full charge but fades again within a short print run, the cell is losing capacity and the battery needs replacement.
