About this replacement

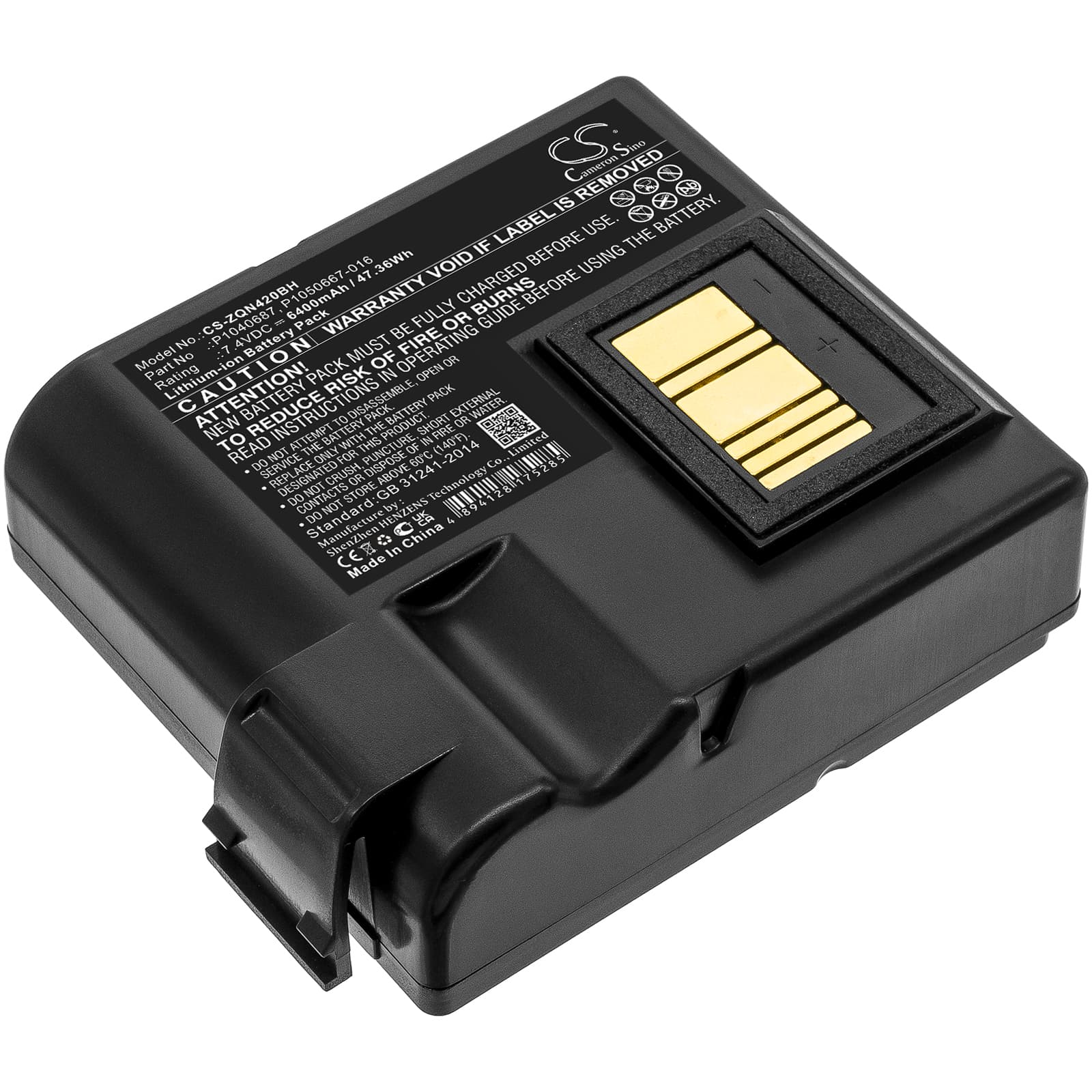

Zebra QLN420 / ZQ630 — 7.4V Li-ion Replacement Battery (P1040687)
This 7.4V, 6400mAh Li-ion battery replaces OEM part numbers P1040687, P1050667-016, and BTRY-MPP-68MA1-01. It fits the Zebra QLN420 and ZQ630 mobile thermal printers. Both models share the same battery bay geometry, connector pinout, and BMS handshake protocol.
- QLN420 and ZQ630 platform compatibility: These two printers run the same 7.4V power rail and use an identical battery latch and four-pin connector. The BMS on each model reads the same cell authentication data, so one cell chemistry works across both without modification.
- Bench tested on actual hardware: We ran this battery on a QLN420 unit and confirmed the BMS completed its handshake without error codes. The cell held voltage above the printer's 6.8V minimum motor drive threshold through a full paper roll print sequence, and the Bluetooth radio stayed connected throughout.
- First-run calibration after install: After installing, charge to 100% and print five test labels before deploying the unit. The paper feed motor draws a surge current on first use, and the BMS uses those initial cycles to set its current profile for the new cells — skipping this step can cause false low-battery warnings in the first shift.
Bluetooth dropping mid-job on the QLN420 and ZQ630
The QLN420 and ZQ630 Bluetooth radios draw a short power burst each time they transmit a print job acknowledgement. When battery voltage sags below roughly 7.0V, the radio can lose enough headroom to drop its connection handshake. The printer firmware then pauses the job and shows a wireless error rather than a low-battery alert, which makes the root cause easy to misread. Charging the battery above 7.2V clears most mid-job disconnections that aren't caused by RF interference.
Print coming out faded or uneven on a freshly charged battery
The thermal print head on these printers requires a stable voltage to hold the correct head temperature across the full print width. If the battery voltage fluctuates — common when a cell is new and not yet cycled — head temperature varies line by line, producing faded bands or uneven density. This is not a head failure. Run three to five full-page print jobs to let the BMS settle its discharge curve, then check print quality again. If banding persists after five cycles, confirm the head voltage setting in the printer's configuration utility matches the 7.4V cell specification.
