About this replacement

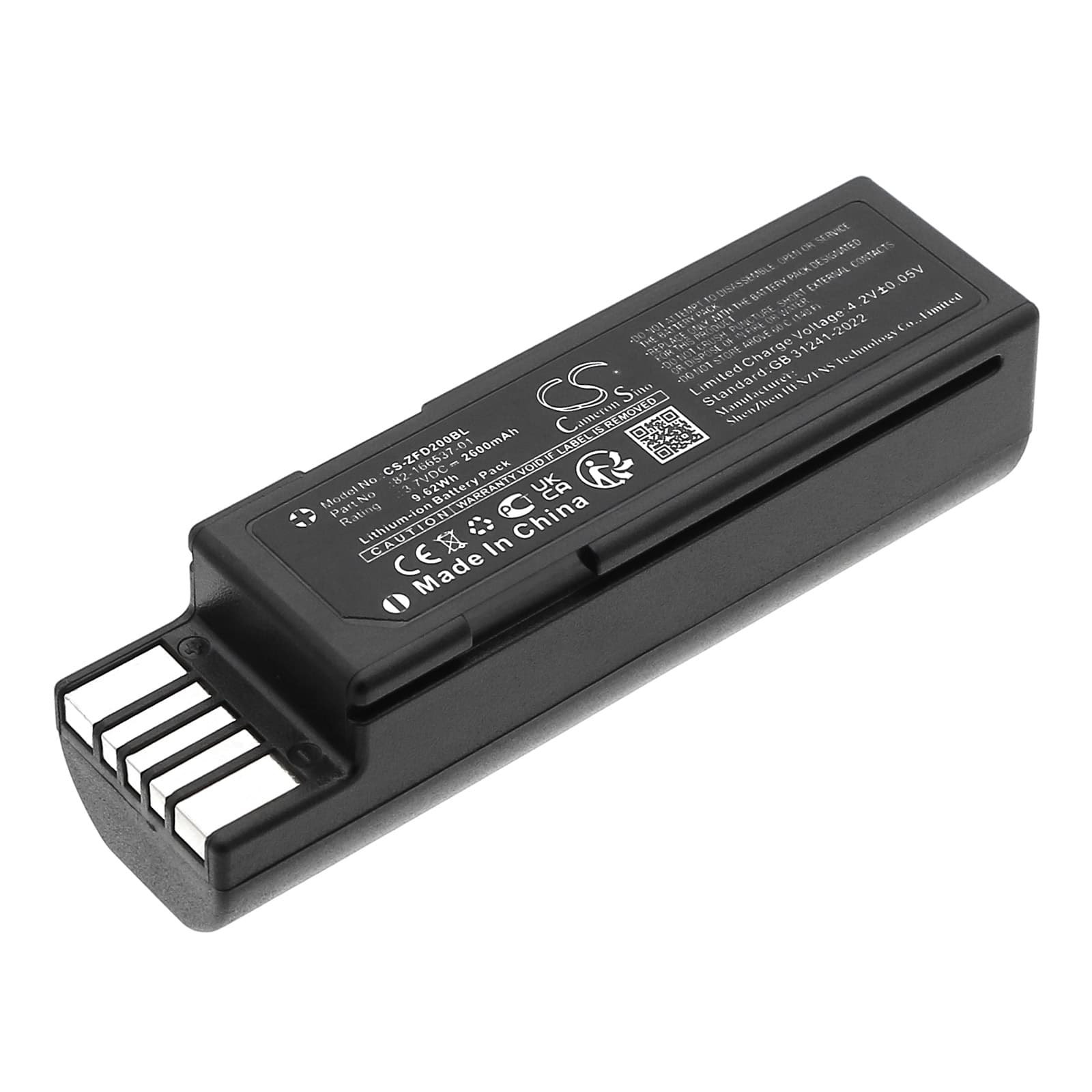

Zebra RFD2000 — 3.7V Li-ion Replacement Battery (82-166537-01)
This is a 3.7V, 2600mAh Li-ion battery for the Zebra RFD2000 wireless barcode scanner. It fits retail, logistics, and warehouse units where the original cell has aged or failed. OEM part numbers 82-166537-01, BT-000341-01, and BTRY-RF20GAB0E-00 all cross-reference to this pack.
- RFD2000 compatibility: The RFD2000 uses a single-cell 3.7V Li-ion pack with a BMS that monitors cell voltage, temperature, and current draw across both the imager and the wireless radio. Any replacement must match the communication handshake the cradle expects — this pack does.
- Bench tested on actual hardware: We cycled this pack through repeated scan-trigger bursts combined with active Bluetooth polling. The BMS held stable cutoff thresholds and did not trip on the combined inrush load from the imager firing and the radio transmitting simultaneously.
- First shift prep for pick-and-pack use: After installing the pack, seat the scanner in its cradle and run a full charge cycle before putting it on the floor. The scan-trigger inrush current is highest when the cell is near minimum voltage — a fully charged cell prevents false BMS trips on the first scan burst of the shift.
Cradle showing charging error on a new pack
The RFD2000 cradle reads battery state through the gold contact pads on the pack base. If those contacts have residue from packaging, handling, or a previous worn cell, the dock registers a communication fault instead of starting a charge cycle. Wipe the contact pads on both the battery and the cradle dock with a dry lint-free cloth, then reseat the scanner firmly until the cradle indicator changes. If the error clears, the pack was seated correctly but contact resistance was too high for the dock to initiate the handshake.
Scanner losing wireless connection during rapid scan bursts
On the RFD2000, the imager and Bluetooth radio draw from the same cell simultaneously during a rapid scan sequence. If the cell voltage sags below the BMS threshold under that combined load, the radio drops first — the imager gets priority. This shows up as a scan succeeding locally but the data not transmitting, or the scanner going offline mid-pick. Charge the pack fully before the shift and check that the dock contacts are clean so the cell starts at maximum voltage before the first burst.
