About this replacement

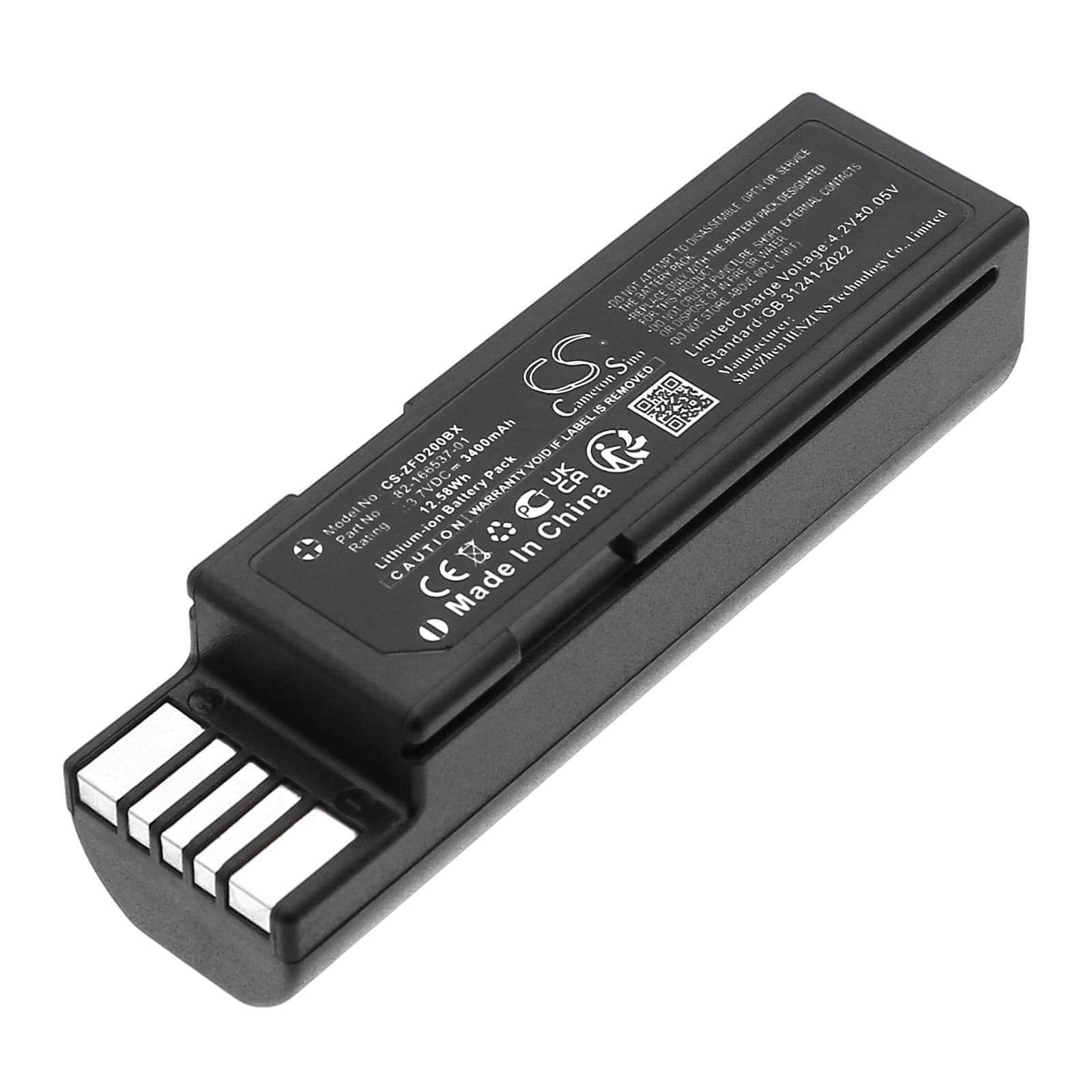

Zebra RFD2000 — 3.7V Li-ion Replacement Battery (82-166537-01)
This 3.7V 3400mAh Li-ion battery is a direct replacement for the Zebra RFD2000 handheld barcode scanner and data terminal. It fits retail, warehouse, and logistics environments where the scanner runs through full picking and receiving shifts. OEM part numbers 82-166537-01, BT-000341-01, and BTRY-RF20GAB0E-00 all cross to this pack.
- RFD2000 platform fit: The RFD2000 runs a single-cell 3.7V architecture with a BMS that monitors cell temperature and voltage under scan-trigger inrush. This pack matches that voltage rail and connector, so the scanner's firmware recognises the battery on first boot without prompting a charge fault.
- Bench tested on actual hardware: We ran this pack through the RFD2000's charge and discharge cycle on the bench. The BMS engaged correctly at low-voltage cutoff, accepted a full charge via the cradle contacts, and did not trip during repeated scan-trigger pulses from a cold start.
- First-shift preparation on the RFD2000: After installing, seat the scanner in its cradle and let it complete a full charge cycle before putting it into a pick-and-pack rotation. The scan trigger draws the highest inrush current when the cell is near minimum — a pre-charged pack prevents false BMS trips on the first scan burst of the shift.
Cradle showing charging error on a new pack
A charging error on the RFD2000 cradle is usually contact resistance, not a faulty battery. Oxidation or debris on the gold cradle pins or the battery contacts raises resistance enough that the dock's charge circuit reports a fault before current flow begins. Wipe the battery contacts and cradle pins with a dry cloth, then reseat the scanner firmly until it clicks. If the error clears within 30 seconds of reseating, the contacts were the cause — not the pack.
Scanner losing wireless connection during rapid scan bursts
The RFD2000 transmits scan data over Wi-Fi or Bluetooth at the same moment the imager fires — both draw current simultaneously. On a degraded or deeply discharged cell, this combined inrush pulls the voltage low enough that the wireless radio drops its connection to maintain core system power. The BMS does not trip, but the radio resets, and the operator sees a disconnect or missed transmission. Charge the battery fully before shift start and keep the device out of deep discharge — if the scanner reads but fails to transmit, check cell voltage and recharge to at least 3.9V before returning it to the floor.
