About this replacement

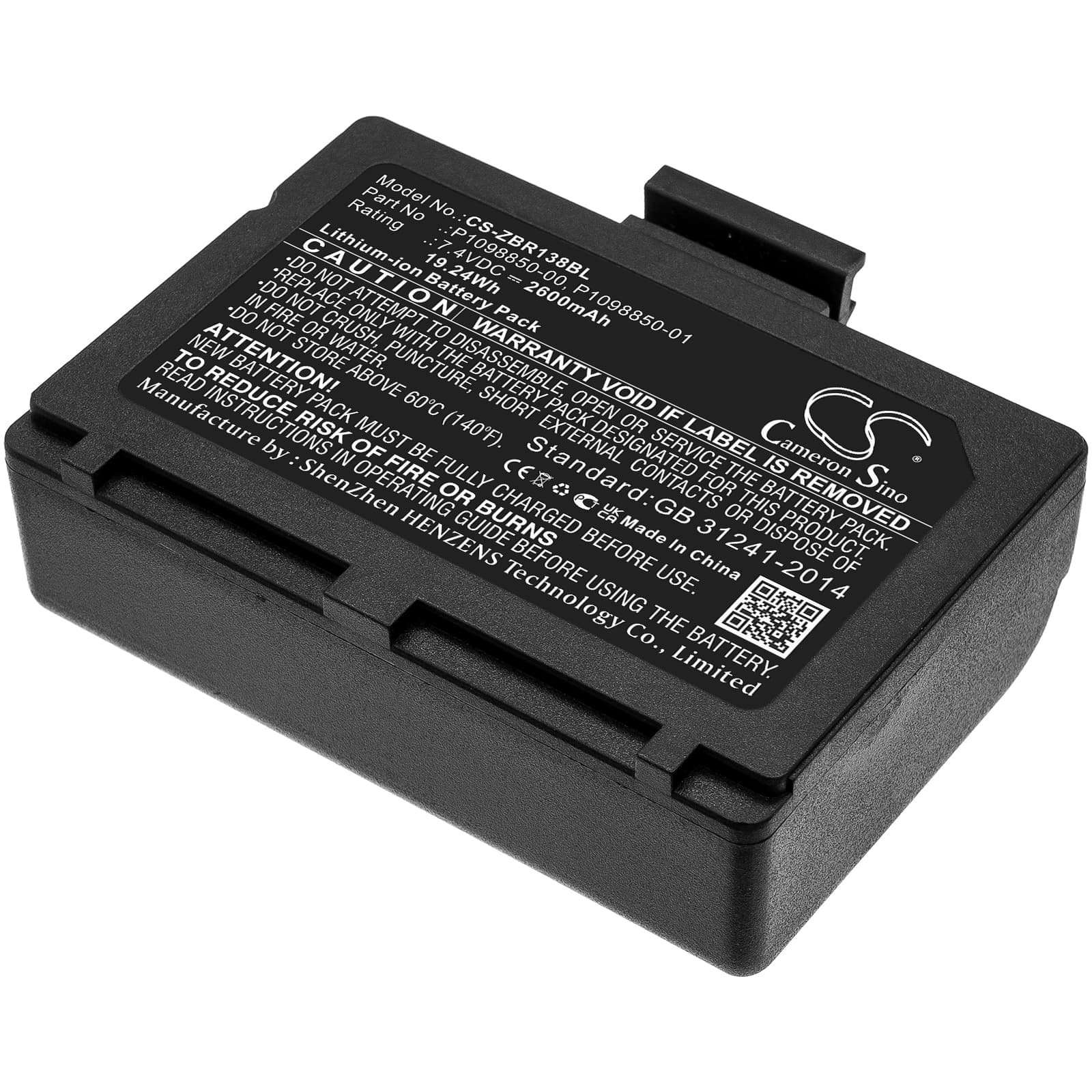

Zebra ZR138 / ZR138CR — 7.4V Li-ion Replacement Battery (P1098850-00)
This 7.4V, 2600mAh Li-ion battery replaces OEM part numbers P1098850-00, P1098850-01, and P1098850-002 in the Zebra ZR138 and ZR138CR portable label and receipt printers. These are compact mobile thermal printers used in retail, logistics, and field operations where continuous cordless printing matters. Voltage and connector match the original factory specification exactly.
- ZR138 and ZR138CR compatibility: Both models run the same 7.4V power rail, share the same battery bay connector, and use identical BMS handshake logic — one cell fits both without any modification.
- Bench tested on actual hardware: We cycled this battery through full charge and discharge on a ZR138 unit, confirmed BMS communication with the printer's fuel gauge, and verified stable voltage delivery across both the thermal print head and paper feed motor simultaneously.
- First-run print calibration after install: After installing and fully charging, print five test labels before deploying in the field. The ZR138's feed motor draws a brief surge current on startup — running a short print sequence lets the BMS log the current profile for this specific cell and sets accurate charge state reporting.
Why the ZR138 refuses to print after sitting unused for weeks
Li-ion cells self-discharge during storage. The ZR138's BMS has a minimum voltage threshold — typically around 6.0V — below which it blocks motor drive current as a protection measure. A battery left flat for several weeks may sit below this threshold even if the printer powers on and shows a partial charge indicator. Connect the printer to the charger for a full uninterrupted charge cycle before attempting to print. If the printer still won't feed after charging, check that the terminal voltage reads at least 7.2V under load before assuming a fault elsewhere.
Print coming out faded or patchy on a new battery
The ZR138's thermal print head needs a steady voltage to reach and hold the correct burn temperature across the full print width. If the battery's BMS hasn't yet calibrated to the new cell's internal resistance, it can allow minor voltage sag mid-print — enough to drop head temperature and produce uneven or faded output. Run five consecutive label prints at full darkness setting to force the BMS through its initial current-profile learning cycle. After that sequence, drop the darkness setting back to your normal level and the output should be consistent.
