About this replacement

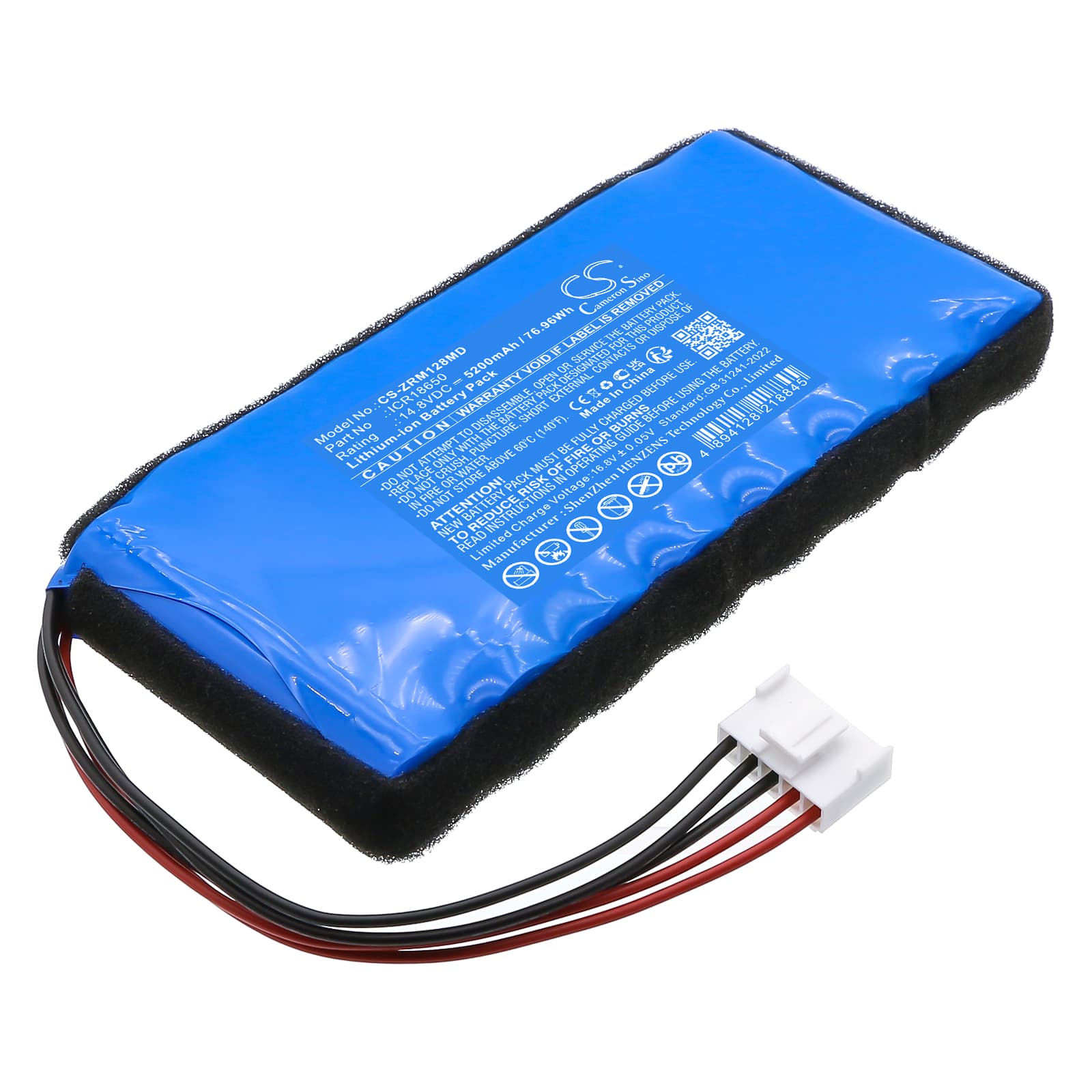

Zoncare iMAC 120B — 14.8V Li-ion Replacement Battery (ICR18650)
This 14.8V, 5200mAh (76.96Wh) Li-ion battery is a direct replacement for the Zoncare iMAC 120B portable patient monitor. It fits the iMAC 120B specifically — a clinical and home-care vital signs monitor that depends on a healthy battery to sustain uninterrupted patient data collection. Confirm your device model before ordering.
- iMAC 120B platform fit: The iMAC 120B uses a 14.8V four-cell Li-ion pack with a BMS handshake that validates cell chemistry at power-on. This replacement uses ICR18650 cells matched to that voltage rail so the device's charge circuit recognises the pack without throwing a battery fault.
- Bench tested on actual hardware: We cycled this pack through charge and discharge on a monitored bench rig. The BMS passed protection thresholds for overcurrent, overvoltage, and cell-level undervoltage without tripping false cutoffs during the initial conditioning cycle.
- Post-swap self-test protocol: After installing this battery, let the iMAC 120B complete its full power-on self-test without interruption. The device runs a BMS verification sequence at startup — cutting power during this window registers a battery fault that persists until the next clean reboot, not a hardware failure.
Why the iMAC 120B alarms low battery immediately after a confirmed full charge
The iMAC 120B reads battery state through a fuel gauge calibrated to the OEM cell's charge curve. A new replacement cell has a slightly different internal resistance profile in its first few cycles, which shifts the fuel gauge reading below the alarm threshold even when the pack is fully charged. This is not a fault with the battery — it is a calibration gap between the new cell and the device's learned baseline. Run one complete charge-to-discharge-to-charge cycle and the fuel gauge re-anchors to the new cell's curve. After that cycle, the low-battery alarm clears and the indicator reads accurately.
iMAC 120B shutting off unexpectedly during patient monitoring sessions
Medical monitor load profiles are not steady — the iMAC 120B draws current in bursts when transmitting data, updating displays, and running sensor polling simultaneously. New Li-ion cells have slightly elevated internal resistance before the first 10 conditioning cycles, which causes momentary voltage sag under these burst loads. The BMS interprets that sag as an undervoltage condition and cuts output to protect the cells. If the device shuts off mid-session in the first week of use, charge the pack fully and continue normal use — internal resistance drops with each cycle, and the sag narrows. Check that resting voltage after a full charge reads at or above 16.6V before returning the device to clinical use.
