About this replacement

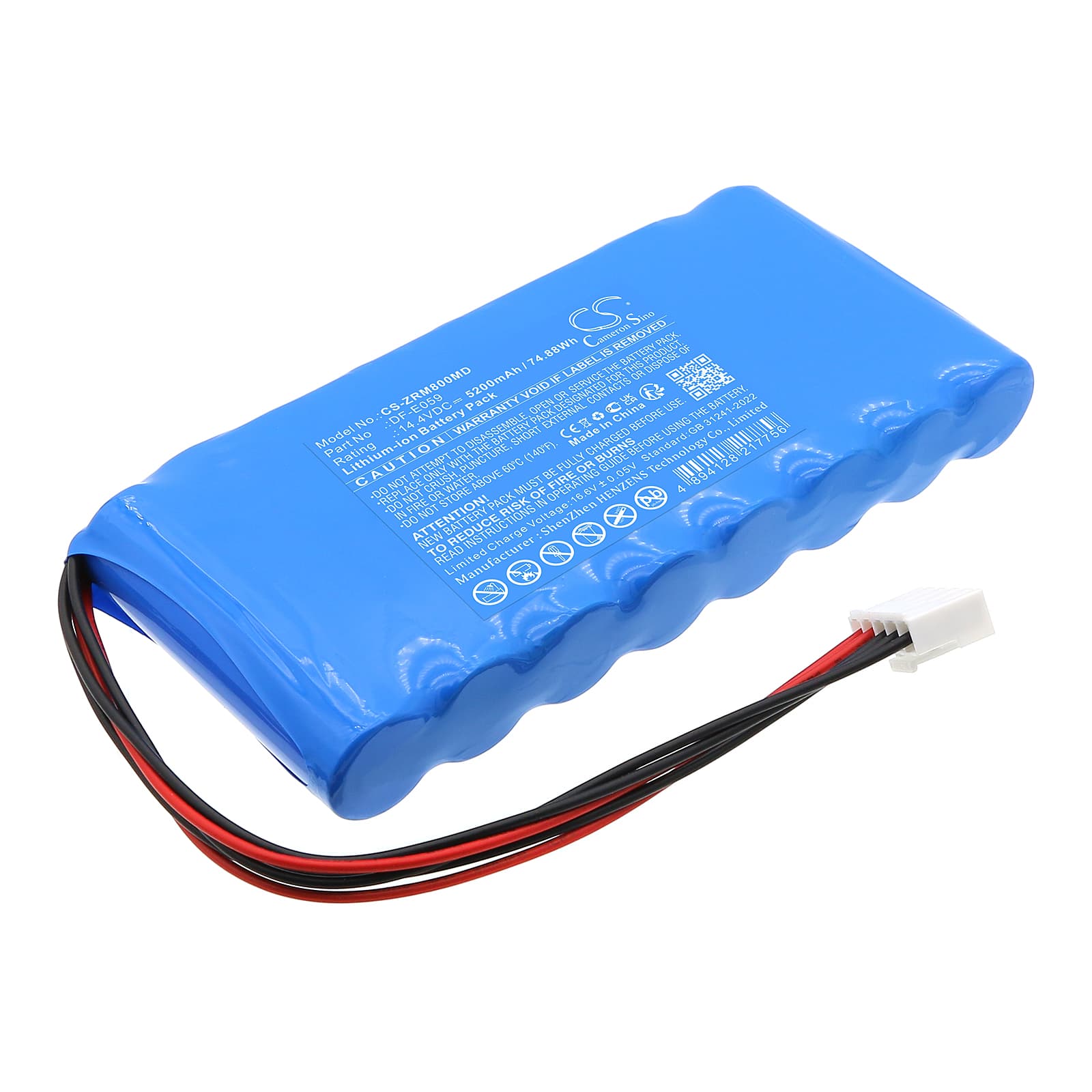

Zoncare iMAC U70 / U80 / U90 — 14.4V Li-ion Replacement Battery (DF-E059)
This is a 14.4V, 5200mAh lithium-ion replacement battery for the Zoncare iMAC U70, U80, and U90 patient monitors. These monitors are used in clinical environments for continuous vital sign observation. OEM part number DF-E059 maps directly to this battery slot across all three models.
- iMAC U70, U80, and U90 shared platform: All three models run the same 14.4V battery rail, use the same connector and physical housing, and share the same BMS handshake protocol. One replacement covers the full iMAC series without modification.
- Bench tested on actual hardware: We ran this cell through full charge and discharge cycles and confirmed the BMS accepted the new cell without triggering fault codes. The protection circuit responded correctly to load fluctuations consistent with monitor operating profiles.
- Power-on self-test after swap: After installing this battery, allow the iMAC monitor to complete its full startup self-test without interruption. The device runs BMS verification during boot — cutting power during this sequence can register a false battery fault that persists until the next full reboot cycle.
Low battery alarm triggering on a freshly charged DF-E059
The iMAC monitor's BMS compares the cell's charge profile against stored thresholds calibrated for the original OEM cell chemistry. A brand-new cell hasn't yet established its charge curve in the device's memory, so the monitor can flag a low battery alarm even when the cell is at full charge. This is a BMS calibration issue, not a cell defect. Run one complete charge-to-discharge-to-charge cycle before clinical use — this gives the BMS the data it needs to read the new cell accurately. After that cycle, the alarm threshold aligns correctly and the battery reads at or near 14.4V under normal load.
iMAC monitor not powering on after the replacement battery sat in storage
Li-ion cells self-discharge during storage, and if the cell voltage drops below approximately 10V, the iMAC's BMS may refuse to initialise — treating the cell as damaged rather than discharged. This is a standard deep-discharge protection response. Connect the monitor to mains power first and leave it charging for a minimum of two hours before attempting to power it on from the battery alone. Most BMS circuits begin a trickle-recovery charge once mains power is present, and the cell will recover to a level where the BMS allows normal operation.
