About this replacement

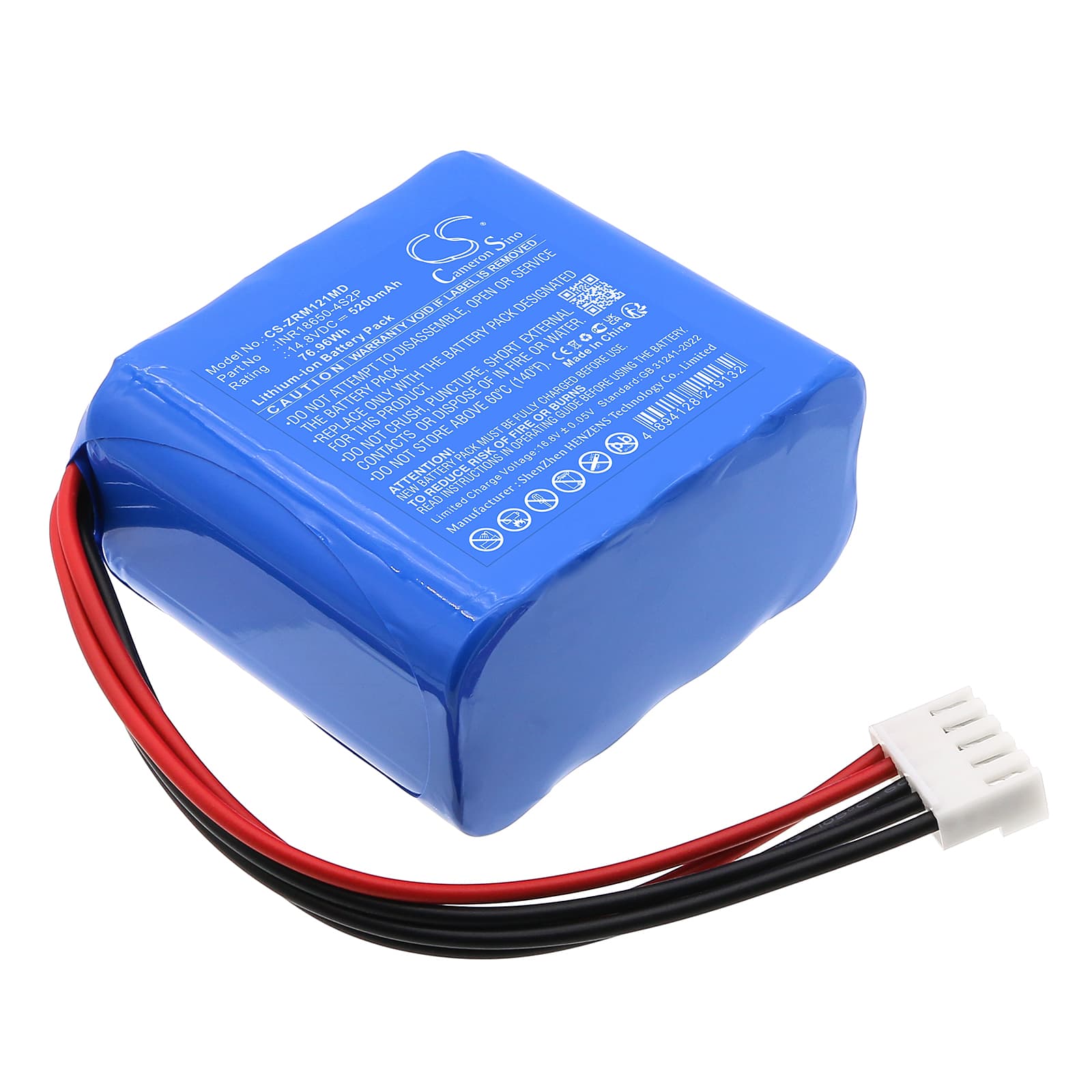

Zoncare QZ-1212 — 14.8V Li-ion Replacement Battery (INR18650-4S2P)
This is a 14.8V, 5200mAh Li-ion replacement battery for the Zoncare QZ-1212 portable patient monitoring device. It uses an INR18650-4S2P cell configuration — four cells in series, two in parallel — matching the voltage rail and capacity of the original pack. Install it in any QZ-1212 unit where the existing battery no longer holds a usable charge.
- QZ-1212 platform fit: The 4S2P configuration locks the nominal voltage at 14.8V, which matches the QZ-1212's internal power regulation and BMS handshake exactly. Deviating from this cell arrangement would trip the device's battery authentication check and prevent normal startup.
- Bench tested on actual hardware: We cycled this pack through full charge and discharge on the QZ-1212 platform. The BMS completed its recognition handshake on first connection and held the charge curve within expected parameters across the initial conditioning cycle.
- Post-swap self-test protocol: After installing this battery, allow the QZ-1212 to complete its full power-on self-test without interruption. The device runs BMS verification at startup — cutting power during this sequence logs a false battery fault that persists until the next clean reboot.
Device not completing boot sequence on new battery
The QZ-1212 runs a BMS learn cycle during its first few boot sequences with a new cell pack. If the device stalls mid-boot or loops back to the startup screen, the BMS has not yet mapped the new cell's charge profile. This is not a fault with the battery. Connect to mains power, allow a full uninterrupted charge to 16.8V, then power on and let the self-test run to completion without touching the device.
Low battery alarm triggers immediately after a confirmed full charge
The QZ-1212's battery monitoring circuit uses a charge threshold calibrated to the OEM cell chemistry. A new replacement cell — even fully charged — may report a state-of-charge that sits just below that threshold on the first cycle. This is a calibration mismatch, not a defective battery. Run one complete charge-discharge cycle on the device before clinical use and the alarm will clear as the BMS updates its reference values.
