About this replacement

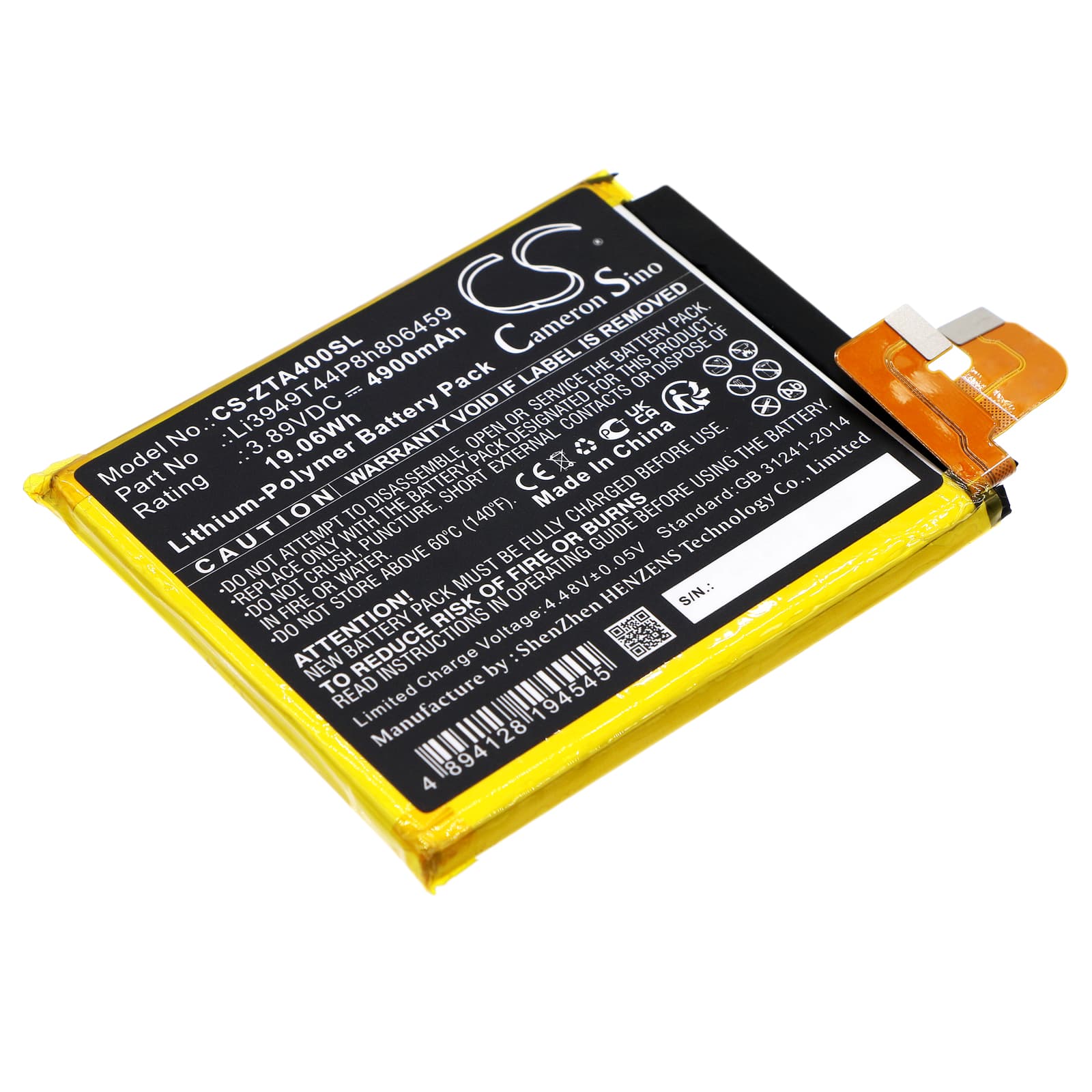

ZTE Axon 40 Ultra — 3.89V Li-Polymer Replacement Battery (Li3949T44P8h806459)
This is a 4900mAh lithium-polymer replacement battery for the ZTE Axon 40 Ultra and Axon 40 Ultra 5G (A2023P, A2023PH). It runs at 3.89V nominal and delivers 19.06Wh of stored energy. It replaces the original OEM cell when the factory battery has degraded and no longer holds adequate charge.
- Axon 40 Ultra platform fit: The A2023P and A2023PH share the same internal chassis, connector pinout, and BMS handshake protocol — one cell fits both. The flex connector and NTC thermistor line up without modification.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the Axon 40 Ultra platform and confirmed the BMS accepted the cell, reported state-of-charge without error flags, and held voltage through full-load screen and modem draw.
- First-cycle fast charge calibration: On first use after installation, disable fast charging for one complete discharge-charge cycle. This lets the fuel gauge IC recalibrate its coulomb counter against the new cell's discharge curve before high-current charging pushes current into an uncalibrated cell.
Why the Axon 40 Ultra reports wrong battery percentage after a cell swap
The fuel gauge IC stores a learned discharge curve from the original cell. When a new cell goes in, that stored curve no longer matches the actual chemistry. The IC reads voltage and estimates charge based on the old model, so the percentage can read 20% higher or lower than reality. One full discharge to automatic shutdown followed by a full charge to 100% forces the IC to rewrite its calibration table against the new cell. After that cycle, percentage reporting typically stabilises within 2–3%.
Sudden shutdown at 20–30% remaining on the replacement cell
This happens when the fuel gauge IC is still using the old cell's voltage-to-capacity curve. The new cell hits its minimum sustain voltage under modem or display load before the IC expects it — the system shuts down to protect the cell even though the reported percentage looks safe. It is not a fault with the replacement cell. Complete one full discharge-charge cycle without fast charging, let the IC recalibrate, and the cutoff point will move back to the correct low-voltage threshold near 3.4V per cell.
