About this replacement

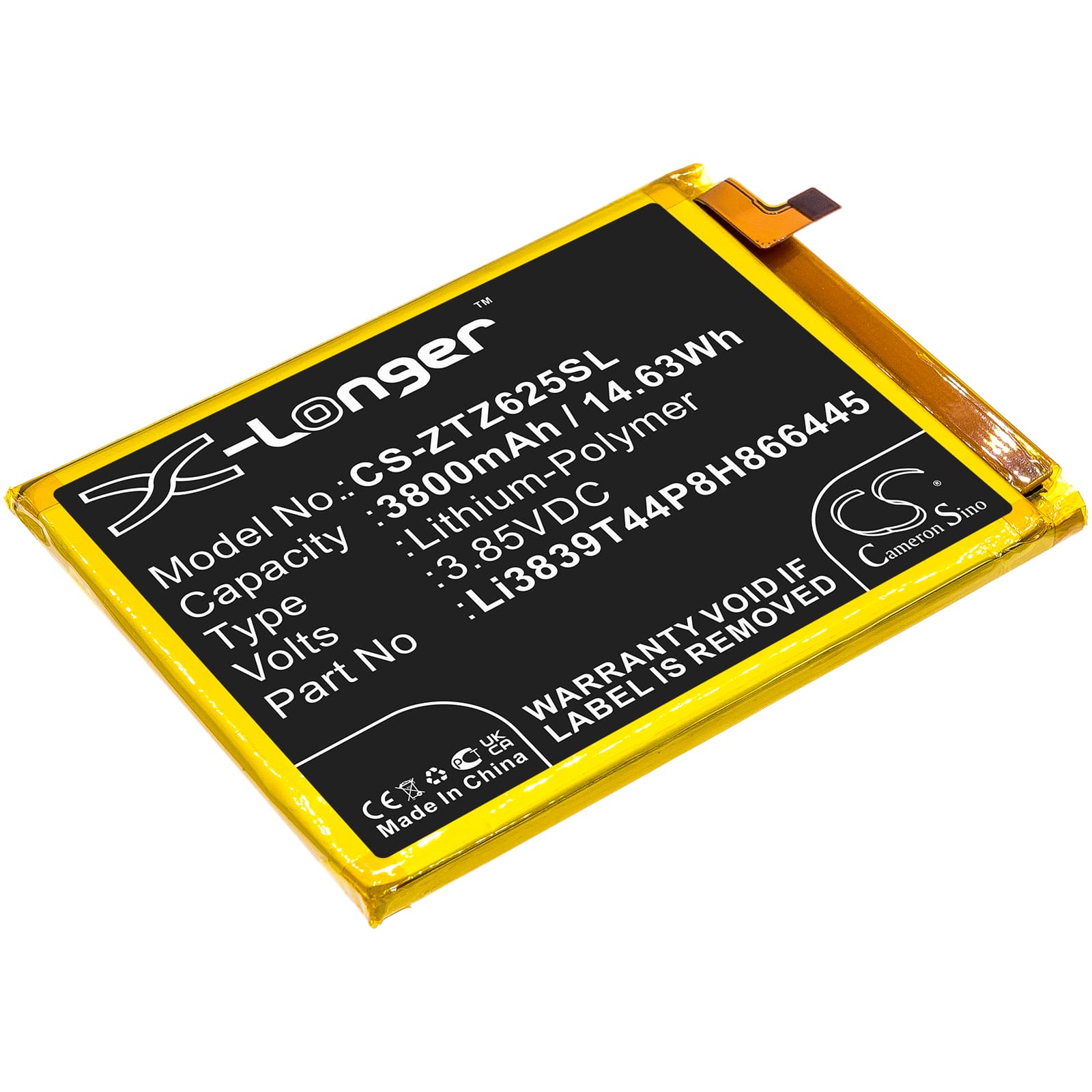

ZTE Blade 11 Prime 2020 / Z6251VS — 3.85V Li-Polymer Replacement Battery (Li3839T44P8H866445)
This is a 3.85V, 3800mAh (14.63Wh) lithium-polymer cell for the ZTE Blade 11 Prime 2020 and Z6251VS. It replaces OEM part Li3839T44P8H866445 when the original cell can no longer hold charge through a normal day of calls, messaging, and app use. Physical dimensions are 85.55 × 63.20 × 4.10mm — confirm these against your original before installing.
- Blade 11 Prime 2020 and Z6251VS compatibility: Both model variants run the same power rail at 3.85V nominal and use the same connector pinout and BMS handshake protocol. One cell covers both.
- Bench tested on actual hardware: We ran the cell through full charge and discharge cycles on the Z6251VS platform. The BMS accepted the cell without error flags, and the charge IC stepped through CC/CV phases cleanly at rated current.
- Fuel gauge recalibration on first cycle: On first use after installation, disable fast charging and run one complete discharge down to auto-shutoff, then charge to 100% uninterrupted. This lets the coulomb counter recalibrate its discharge curve against the new cell before fast-charge current is applied to an uncalibrated gauge.
Sudden shutdown at 20–30% on the Blade 11 Prime 2020
This is a voltage cliff issue, not a capacity issue. When the modem transmits or the screen peaks in brightness, current draw spikes sharply. If the cell's internal impedance is even slightly elevated, voltage drops below the BMS cutoff threshold in milliseconds — the phone shuts off even though the fuel gauge still shows charge remaining. A fresh cell with lower impedance sustains voltage through those draw spikes. After swapping, run one full discharge-charge cycle so the fuel gauge IC maps the new cell's actual voltage curve before drawing any conclusions about shutdown behaviour.
USB fast charge not activating on the first cycle after a cell swap
The ZTE charge IC checks cell voltage and BMS status before it negotiates fast-charge protocols. On a new cell straight from storage, the starting voltage may be low enough that the IC defaults to standard 5V charging as a precaution. This is not a fault — it is the IC protecting an uncalibrated cell. Plug in via the stock charger, let the first charge complete fully at standard rate, then disconnect and reconnect. Fast charge should activate from the second cycle onward once the IC has logged a full charge event against the new cell.
