About this replacement

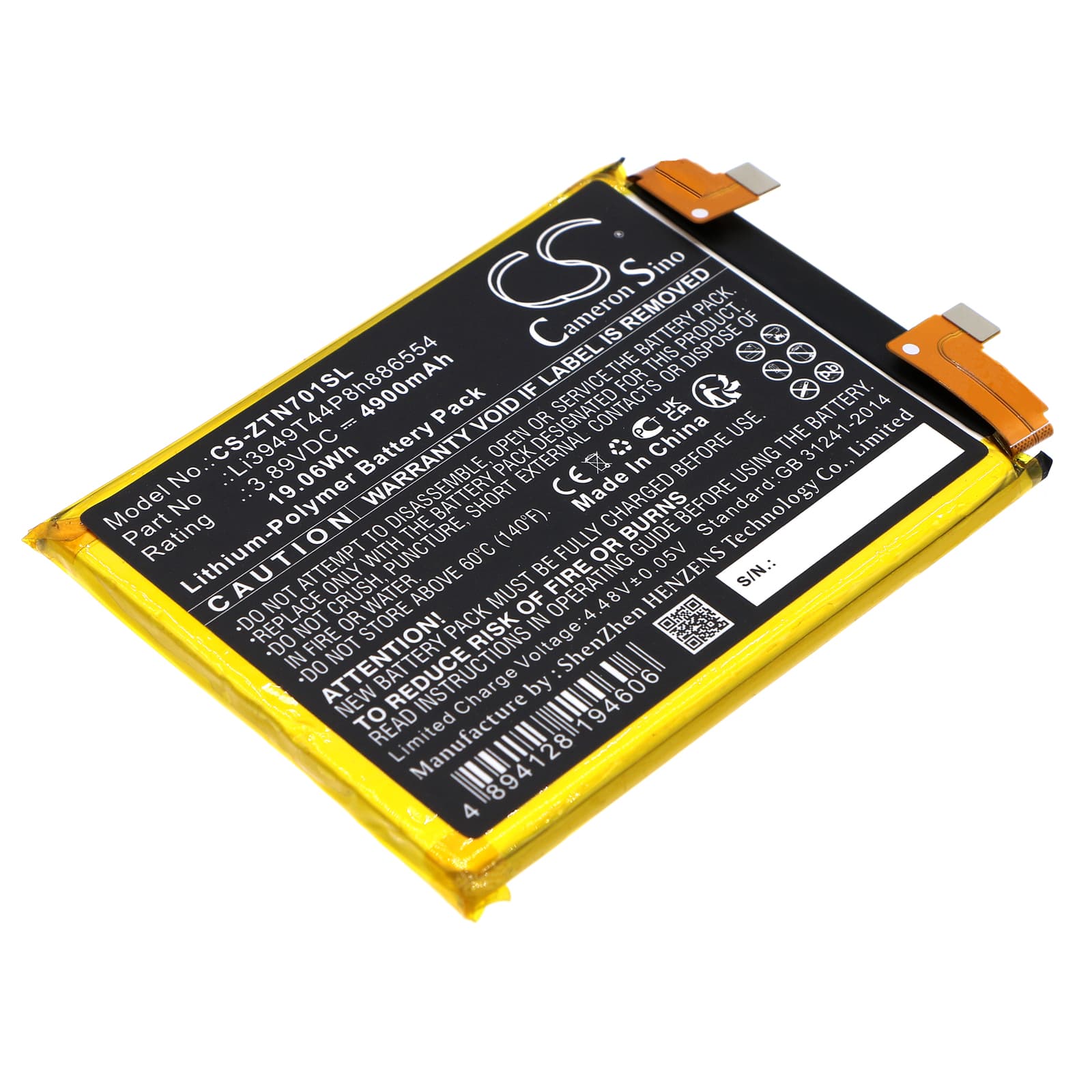

ZTE Nubia Z40 Pro Series — 3.89V Li-Polymer Replacement Battery (Li3949T44P8h886554)
This is a 3.89V, 4900mAh (19.06Wh) Li-Polymer cell for the ZTE Nubia Z40 Pro, Nubia Z40 Pro 5G, Nubia Z40S Pro, and Nubia Z40S Pro 5G. It replaces the original OEM cell when the existing battery has degraded and can no longer hold charge through a full day of use. The OEM part number is Li3949T44P8h886554.
- Z40 Pro and Z40S Pro cross-compatibility: Both the Z40 Pro and Z40S Pro lines share the same physical footprint (86.40 × 64.90 × 5.30mm), connector pinout, and BMS handshake protocol — so the same cell fits all four variants without modification.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on a Z40 Pro unit. The BMS accepted the cell on first connection, voltage stabilised at 3.89V nominal, and charge termination triggered correctly at full capacity without overcharge events.
- Fuel gauge recalibration on first use: On first use after installation, disable fast charging and run one complete discharge-to-charge cycle at standard speed. This lets the fuel gauge IC map its coulomb counter against the new cell's actual discharge curve before high-current charging is introduced to an uncalibrated cell.
Sudden shutdown at 20–30% on the Nubia Z40 Pro after cell replacement
The Z40 Pro's Snapdragon platform draws a sharp current spike during 5G modem handoffs and high-refresh display activity. A new cell with an uncalibrated fuel gauge IC can report 25% remaining while actual cell voltage has already dropped below the BMS cutoff threshold under that load. The BMS reads a real undervoltage event and shuts the device down — even though the percentage shown looked safe. One full discharge-charge cycle at standard charge speed recalibrates the coulomb counter and eliminates most of these false-floor shutdowns.
USB-PD or proprietary fast charge not activating on the first cycle after swap
ZTE's fast charge protocol negotiates between the charge IC on the motherboard and the BMS in the battery. On a fresh cell, the BMS starts in a conservative low-current mode until it has completed at least one full charge cycle and confirmed cell integrity. Plugging in a fast charger immediately after installation often results in standard 5V/1A charging only — this is normal BMS behaviour, not a fault with the charger or the cell. After the first complete cycle, reconnect the fast charger and the protocol negotiation will proceed at full current.
